Spade Connectors: What Are They and How Do You Use Them?

Understanding Spade Connectors: A Foundation for Reliable Electrical Connections

Spade connectors, also known as fork connectors, are indispensable components in electrical wiring.

Their primary purpose is to establish reliable and easily disconnectable electrical connections.

Essentially, they bridge the gap between a wire and a terminal, offering a secure and convenient method for transmitting electrical current.

The Importance of Proper Usage

Using spade connectors correctly is paramount for ensuring the integrity and longevity of any electrical circuit.

A poorly installed connector can lead to a myriad of problems, ranging from intermittent connectivity to complete circuit failure and even hazardous situations like electrical fires.

Therefore, a thorough understanding of their function and proper application is essential for anyone working with electrical systems.

Article Goal: Your Comprehensive Guide

This article aims to serve as a comprehensive guide to spade connectors.

We will explore what they are, how to use them safely and effectively, and the best practices for ensuring reliable connections.

Whether you’re a seasoned electrician or a DIY enthusiast, this guide will provide you with the knowledge and confidence to utilize spade connectors with precision and care.

Our goal is to empower you to create electrical connections that are both robust and dependable.

What is a Spade Connector? Defining the Core Concept

Having established the critical role of spade connectors in reliable electrical systems, let’s delve into a precise definition of what these components actually are.

A spade connector, also frequently called a fork connector, is a type of electrical terminal designed to create a secure yet easily detachable electrical connection. It serves as an interface between a wire and a screw terminal, offering a convenient and robust alternative to simply wrapping a bare wire around the screw.

Key Features of Spade Connectors

Several key features define a spade connector and contribute to its functionality:

Spade (Fork) Shape

The most distinctive characteristic is, of course, its spade or fork shape. This design allows the connector to be easily slid under the head of a screw terminal without requiring the complete removal of the screw.

This feature is particularly useful in situations where frequent connections and disconnections are necessary, or when working in confined spaces.

Fitting onto a Screw Terminal

Spade connectors are specifically engineered to mate with screw terminals. The fork’s opening is sized to accommodate standard screw diameters, ensuring a secure and mechanically sound connection when the screw is tightened.

Ease of Use

Compared to other connection methods, such as soldering or using wire nuts, spade connectors offer a significant advantage in terms of ease of use. Crimping a spade connector onto a wire is a relatively simple process.

Furthermore, the ability to quickly connect and disconnect without damaging the wire or terminal makes them ideal for applications requiring flexibility.

Types of Spade Connectors

Spade connectors are available in various configurations, primarily differentiated by their insulation and the materials used in their construction.

Insulated vs. Non-Insulated

Insulated spade connectors feature a plastic or nylon sleeve that covers the barrel and part of the spade. This insulation provides an added layer of protection against accidental short circuits and improves the overall safety of the connection. They are typically color-coded to indicate the appropriate wire gauge.

Non-insulated spade connectors, on the other hand, lack this protective sleeve. They are generally used in applications where insulation is already provided by other means, or where space is a constraint. Extra care should be taken when using non-insulated connectors to avoid accidental shorts.

Material: Brass and Copper

Brass and copper are the most common materials used in spade connector construction. Copper offers superior conductivity, resulting in minimal voltage drop across the connection. It is, however, more expensive than brass.

Brass, an alloy of copper and zinc, provides a good balance of conductivity, corrosion resistance, and cost-effectiveness. The choice between brass and copper often depends on the specific application and budget considerations.

The Importance of Proper Insulation

Regardless of whether an insulated or non-insulated spade connector is used, proper insulation is crucial.

Insulation prevents accidental short circuits, protects against environmental factors like moisture, and enhances the overall safety and reliability of the electrical connection.

When using non-insulated connectors, it is imperative to ensure that the connection is adequately insulated using heat shrink tubing or electrical tape.

Why Use Spade Connectors? Advantages and Applications

Having defined what a spade connector is and explored its core features, it’s crucial to understand why one might choose to use them in electrical projects. The decision often boils down to a combination of convenience, reliability, and suitability for the task at hand. Spade connectors offer distinct advantages in specific applications, but understanding their limitations is equally important.

Ease of Use: Speed and Simplicity

One of the most compelling reasons to use spade connectors is their sheer ease of use. Unlike soldering, which requires specialized equipment and skills, or wire nuts, which can be bulky and less secure, spade connectors offer a quick and straightforward method for making electrical connections.

Installation is often as simple as stripping the wire, crimping the connector, and tightening a screw. Removal is equally uncomplicated, allowing for rapid reconfiguration or troubleshooting of electrical circuits. This is especially beneficial in scenarios requiring frequent modifications or temporary connections.

Reliability: The Importance of a Proper Crimp

When correctly crimped, a spade connector provides a secure and reliable electrical connection. A properly executed crimp creates a gas-tight seal between the wire and the connector, preventing corrosion and ensuring consistent conductivity over time.

However, this reliability hinges on using the appropriate crimping tool and technique. A poorly crimped connection can lead to loose wires, increased resistance, and potentially even electrical failures. Therefore, investing in a quality crimping tool and understanding the proper crimping procedure are essential for realizing the full reliability benefits of spade connectors.

Versatility: A Wide Range of Applications

Spade connectors are surprisingly versatile and find applications in a wide variety of electrical systems. They are commonly used in automotive wiring, audio equipment, household appliances, and electronic projects.

Their ability to handle a range of wire gauges and current levels further enhances their adaptability. This makes them a valuable component in any electrician’s or hobbyist’s toolkit.

Specific Examples of Spade Connector Use

• Speaker Connections: Spade connectors are frequently used to connect speaker wires to amplifiers and receivers. Their ease of use and secure connection make them ideal for ensuring optimal audio quality.

• Automotive Wiring: In automotive applications, spade connectors are used for various connections within the vehicle’s electrical system, offering a reliable and easily serviceable connection point.

When to Avoid Spade Connectors: High-Vibration Environments

Despite their advantages, spade connectors are not suitable for all applications. In environments with high levels of vibration, the screw terminals they connect to can loosen over time, leading to intermittent connections or complete failures.

In such cases, more robust connection methods, such as soldering or specialized vibration-resistant connectors, should be considered. The goal is to ensure the long-term integrity and reliability of the electrical system.

Tools Needed for Working with Spade Connectors

The advantages of using spade connectors – ease of use, reliability, and versatility – are only fully realized when you have the right tools for the job. Equipping yourself with the proper instruments is not just about convenience; it’s about ensuring a safe, secure, and long-lasting electrical connection. The core tools for working with spade connectors are crimp tools and wire strippers, but a few other implements can also be invaluable.

Crimp Tools: The Cornerstone of a Secure Connection

A crimp tool is the most important tool in your arsenal when working with spade connectors. Its function is to mechanically deform the connector around the stripped wire, creating a strong, gas-tight bond. This bond is what ensures reliable electrical conductivity and prevents corrosion.

Using the incorrect crimp tool can result in a connection that is either too loose (leading to increased resistance and potential failure) or too tight (damaging the wire strands and weakening the connection).

Types of Crimpers

Several types of crimpers are available, each with its own advantages and disadvantages:

• Ratcheting Crimpers: These crimpers feature a ratcheting mechanism that ensures a full, consistent crimp every time. The tool will not release until the correct pressure is applied, reducing the risk of under-crimping. Ratcheting crimpers are generally preferred for their reliability and consistency.

• Non-Ratcheting Crimpers: These are simpler and often less expensive than ratcheting crimpers. They require more user skill to apply the correct amount of pressure. Over-crimping is a real possibility. They can be a suitable option for occasional use, but ratcheting models are recommended for frequent or professional applications.

• Specialized Crimpers: Some crimpers are designed for specific types of connectors or wire gauges. These may offer improved performance and precision for specialized tasks, such as working with very small or very large wires.

Choosing the Right Crimper

Selecting the right crimper involves several considerations:

• Connector Type: Ensure the crimper is compatible with the type of spade connector you are using (insulated or non-insulated). Some crimpers have interchangeable dies to accommodate different connector types.

• Wire Gauge: The crimper must be capable of crimping the wire gauge you are working with. Most crimpers have multiple crimping stations for different wire sizes.

• Quality and Durability: Invest in a crimper from a reputable brand that is made from durable materials. A high-quality crimper will last longer and provide more consistent results.

Wire Strippers: Preparing the Wire for Connection

Wire strippers are essential for removing the insulation from the end of the wire without damaging the conductor. Proper stripping is crucial for creating a secure and reliable connection with the spade connector.

Stripping too much insulation can leave exposed wire that could cause a short circuit, while not stripping enough insulation can prevent the connector from making proper contact.

Importance of Correct Stripping

• Consistent Length: Strip the wire to the appropriate length specified by the spade connector manufacturer. This ensures that the conductor is fully inserted into the connector barrel.

• Avoiding Damage: Use wire strippers that are designed to avoid nicking or cutting the wire strands. Damaged strands weaken the connection and increase the risk of failure.

• Adjustable Strippers: Consider using adjustable wire strippers that can be set to the correct wire gauge. These strippers provide a cleaner and more consistent strip than fixed-gauge strippers.

Other Useful Tools

While crimp tools and wire strippers are the essential tools, other tools can be helpful when working with spade connectors:

• Multimeter: A multimeter is invaluable for testing voltage and continuity in electrical circuits. Use it to verify that the connection is working correctly and that there are no shorts or open circuits.

By investing in the right tools and using them properly, you can ensure that your spade connector connections are secure, reliable, and safe.

Step-by-Step Guide: How to Use Spade Connectors

Having the right tools is only half the battle; knowing how to use them effectively is crucial for creating reliable and safe electrical connections with spade connectors. This section provides a detailed, step-by-step guide to ensure proper installation and long-lasting performance.

Preparation: Setting the Stage for Success

The foundation of a good electrical connection lies in careful preparation. This involves selecting the appropriate spade connector and preparing the wire for crimping.

Selecting the Correct Spade Connector Size

Spade connectors come in various sizes to accommodate different wire gauges. Using the wrong size can lead to a weak or insecure connection. The wire gauge is typically printed on the wire insulation. The spade connector should be clearly marked with the compatible wire gauge range. Always match the connector to the wire gauge to ensure a proper fit.

Using a connector that’s too large will result in a loose crimp, while one that’s too small may damage the wire strands or prevent a proper crimp altogether.

Stripping the Wire to the Appropriate Length

Wire strippers are used to remove the insulation from the end of the wire, exposing the conductor for crimping. Stripping the wire to the correct length is vital. Expose enough conductor to fill the barrel of the spade connector completely, but avoid exposing too much, which could lead to short circuits.

Most spade connectors have a visual indicator on the barrel showing the optimal strip length. If not, a good rule of thumb is to strip approximately 1/4 to 3/8 of an inch (6-10 mm) of insulation. When stripping, be careful not to nick or cut the wire strands, as this weakens the wire and reduces conductivity.

Crimping: Securing the Connection

The crimping process mechanically joins the spade connector to the wire, creating a secure and conductive pathway.

Inserting the Stripped Wire into the Spade Connector Barrel

After stripping the wire, twist the exposed strands together to prevent fraying. Insert the twisted wire fully into the barrel of the spade connector. Ensure that all the wire strands are contained within the barrel and that no insulation is trapped inside.

Using the Correct Crimp Tool to Crimp the Connector Securely

Position the spade connector and wire within the jaws of your crimp tool. The correct die of the crimper should correspond to the wire gauge you’re working with. Apply firm, even pressure to the crimp tool until the crimp is complete. With a ratcheting crimper, the tool will release automatically once the proper pressure is applied. Non-ratcheting crimpers require you to manually gauge the pressure.

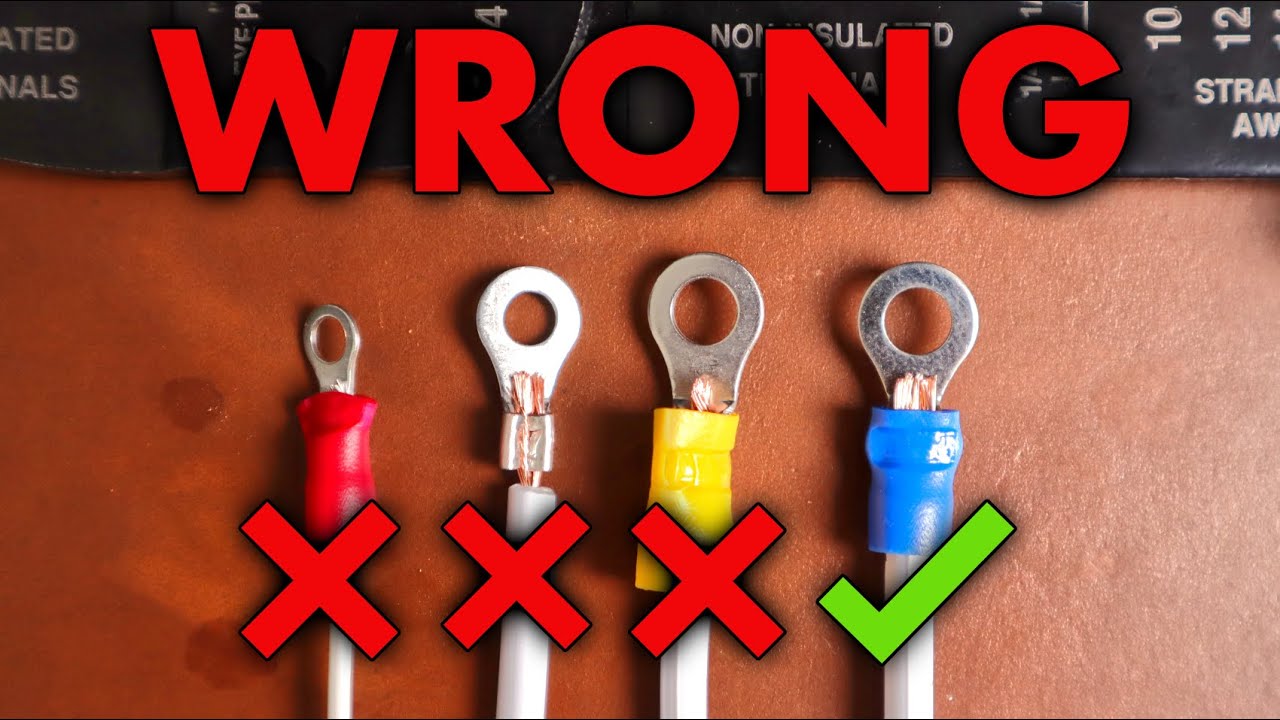

Inspecting the Crimp

A properly crimped connection is crucial for long-term reliability. Visually inspect the crimp to ensure that the connector is securely deformed around the wire. The crimp should be symmetrical and tight, with no loose strands of wire protruding from the connector. Tug gently on the wire to test the strength of the crimp. If the wire pulls out easily, the crimp is insufficient and must be redone.

Making the Connection: Completing the Circuit

The final step involves attaching the spade connector to the screw terminal.

Loosening the Screw on the Terminal

Use a screwdriver to loosen the screw on the terminal where you’ll be attaching the spade connector. Loosen the screw enough to allow the spade connector to slide easily underneath the screw head.

Sliding the Spade Connector Under the Screw

Slide the open end (fork) of the spade connector under the loosened screw head. Ensure the spade sits flat against the terminal surface for optimal contact. Some terminals have a preferred orientation. If unsure, consult the device’s documentation or use best judgement, keeping the spade flat and secure.

Tightening the Screw Securely

Tighten the screw securely, but avoid over-tightening, which can damage the connector or the terminal. The goal is to create a firm and stable connection that will not loosen over time. A good indicator of proper tightness is when the spade connector is held firmly in place and cannot be easily moved. After tightening, give the spade connector a gentle tug to ensure it is securely fastened.

Safety Precautions: Prioritizing Safe Electrical Work

Working with electrical wiring, even with seemingly simple components like spade connectors, demands strict adherence to safety protocols. Carelessness can result in electric shock, fire hazards, or damage to equipment. Therefore, understanding and implementing essential safety measures is paramount before commencing any electrical project.

Disconnecting Power: The Golden Rule

The most critical safety precaution is to always disconnect the power supply before working on any electrical connection. This seemingly obvious step is frequently overlooked, leading to serious accidents.

Locate the appropriate circuit breaker or fuse that controls the circuit you’ll be working on and switch it off. Double-check that the power is indeed off by using a non-contact voltage tester or a multimeter to verify that no voltage is present at the wires you intend to work with. Never assume the power is off based on someone else’s word. Confirm it yourself.

Personal Protective Equipment (PPE): Your First Line of Defense

Even with the power disconnected, it’s wise to use appropriate personal protective equipment (PPE) to mitigate any unforeseen risks.

• Insulated Gloves: Wear insulated gloves rated for the voltage you might encounter. These gloves provide a barrier against electric shock in case of accidental contact with a live wire.

• Safety Glasses or Goggles: Protect your eyes from sparks, debris, or accidental contact with chemicals.

• Appropriate Clothing: Avoid wearing loose clothing or jewelry that could get caught in wiring or equipment. Wear non-conductive shoes to insulate yourself from the ground.

Component Selection: Matching Specifications

Choosing the right spade connectors is about more than just physical fit; it’s about ensuring they meet the electrical demands of the circuit.

Voltage and Current Ratings

Spade connectors, like all electrical components, are rated for specific voltage and current levels. Exceeding these ratings can lead to overheating, insulation breakdown, and even fire.

Check the voltage and current requirements of your circuit and select spade connectors that meet or exceed those specifications. These ratings are typically printed on the connector packaging or in the manufacturer’s specifications.

Wire Gauge Compatibility

As previously discussed, matching the spade connector to the wire gauge is crucial for a secure mechanical connection. However, it’s also a safety consideration.

Using an undersized connector on a thick wire can create a bottleneck, leading to excessive heat generation and potential failure. Always verify that the connector is designed for the specific wire gauge you are using. Consult wire gauge charts if needed.

Insulation Integrity

Inspect spade connectors carefully for any signs of damage to the insulation. Cracks, tears, or discoloration can compromise the connector’s ability to prevent short circuits and electrical hazards. Discard any damaged connectors and use replacements. Proper insulation is key to safe, reliable connections.

Troubleshooting Common Problems with Spade Connectors

Even with careful installation, electrical connections utilizing spade connectors can sometimes develop issues. Identifying and addressing these problems promptly is crucial to maintaining circuit integrity and preventing potential hazards. Let’s explore some common issues, their root causes, and practical solutions.

Loose Connections: Causes and Remedies

A loose connection is one of the most frequent problems encountered with spade connectors. This can manifest as intermittent circuit behavior or complete circuit failure.

Improper Crimping: A Primary Culprit

The most common cause of a loose connection is an improperly crimped spade connector. A weak or incomplete crimp fails to establish a solid, lasting mechanical and electrical bond between the wire and the connector.

The solution involves re-crimping the connector, but first, carefully inspect the existing crimp. If the crimp appears visibly deformed, too loose, or made with the wrong crimping die, cut off the old connector and start fresh with a new one. Ensure you use the correct crimping tool and die size for the specific spade connector and wire gauge.

When crimping, apply firm, even pressure to create a secure bond. A ratcheting crimper is highly recommended as it ensures a consistent and complete crimp every time.

Loose Screw Terminals: A Simple Fix

Another cause of loose connections stems from the screw terminal itself. Over time, vibration or temperature fluctuations can cause the screw to loosen, compromising the connection.

The fix is usually straightforward: simply tighten the screw securely. However, avoid over-tightening, which can strip the threads or damage the spade connector. If the screw is stripped, it may be necessary to replace the entire terminal block or the device to which it is attached.

Corroded Connections: Combating the Effects of Moisture

Corrosion is a common enemy of electrical connections, especially in damp or humid environments.

The Moisture Factor

Exposure to moisture leads to oxidation of the metal components in the spade connector and the wire. This oxidation creates a layer of resistance, hindering electrical flow and potentially causing circuit malfunction.

Cleaning Corrosion: A Temporary Solution

In cases of minor corrosion, cleaning the connector might restore functionality. Use a wire brush or specialized electrical contact cleaner to remove the corrosion from both the spade connector and the screw terminal.

Be sure to disconnect the power before cleaning!

After cleaning, apply a thin layer of dielectric grease to the connection to help prevent future corrosion.

Corrosion-Resistant Connectors: A Proactive Approach

For environments prone to moisture, consider using corrosion-resistant spade connectors. These connectors are often made from tin-plated brass or other materials that resist oxidation. Selecting these preemptively minimizes future issues.

Broken Connectors: Recognizing and Resolving Damage

Spade connectors can sometimes break, either from overtightening, physical stress, or material fatigue.

Over-tightening and Stress

Applying excessive force when tightening the screw can crack or deform the spade connector, especially at the point where the spade forks meet the barrel. Similarly, physical stress from bending or pulling on the wires can also lead to breakage.

Replacement is Key

A broken spade connector should always be replaced. Attempting to repair it is not recommended as it compromises the integrity and reliability of the connection. When replacing, ensure the new connector is rated for the appropriate voltage, current, and wire gauge. Also, assess why the original connector broke and take steps to prevent recurrence. For instance, ensure the wire is adequately supported to avoid stress on the connector.

Hopefully, you now have a good grasp of what is a spade connector and how they’re used. Give ’em a try next time you need a solid, easy-to-manage connection – you might just find your new favorite way to wire things up!
