The Secret to a Happy Plumbing System: Sizing Your Expansion Tank!

An expansion tank is an often-overlooked yet critical component of any residential or commercial plumbing system. Its primary function is to accommodate the increased volume of water created by thermal expansion as your water heater heats water. Without an expansion tank, this excess volume has nowhere to go, potentially leading to increased pressure and system damage.

Why Expansion Tanks Matter

Imagine a closed system where water is heated. As the temperature rises, the water molecules become more active, taking up more space. Since water is essentially incompressible, this expansion creates pressure.

An expansion tank acts as a buffer, providing a space for the expanding water to enter, thereby relieving pressure on the plumbing system. This prevents the pressure from reaching dangerous levels that could trigger the pressure relief valve or even cause pipes to burst.

The Perils of Incorrect Sizing

Many homeowners underestimate the importance of correctly sizing their expansion tank. Choosing the wrong size, whether too small or too large, can have significant consequences. An undersized tank won’t provide enough space for the expanding water, leading to frequent activation of the pressure relief valve, water damage, and potential plumbing system failure.

Conversely, an oversized tank, while not as immediately detrimental, represents an unnecessary expense and inefficient use of space. It is crucial to strike the right balance to ensure optimal performance and cost-effectiveness.

Your DIY Sizing Guide

This guide is designed to empower you to accurately size your expansion tank using simple DIY methods. We’ll walk you through the process step-by-step, from gathering the necessary information to performing the calculations and selecting the appropriate tank for your needs.

By taking a proactive approach to plumbing maintenance, you can ensure the longevity and efficiency of your water heating system, prevent costly repairs, and enjoy the peace of mind that comes with a well-maintained home. Let’s dive in and unlock the secrets to a happy, healthy plumbing system!

Understanding the Fundamentals: Water Pressure and Thermal Expansion Explained

Before diving into the specifics of sizing an expansion tank, it’s vital to grasp the fundamental principles at play: thermal expansion and water pressure. These two concepts dictate how an expansion tank functions and why it’s so crucial to plumbing system health.

The Science of Thermal Expansion

Thermal expansion, in the context of water heaters, refers to the phenomenon where water increases in volume as its temperature rises. This isn’t merely a scientific curiosity; it’s a driving force behind the need for expansion tanks.

Why Thermal Expansion Occurs in Water Heaters

Water molecules are in constant motion. As heat is applied, this motion intensifies, causing the molecules to move further apart.

Because water is virtually incompressible, this increased molecular separation leads to a noticeable increase in volume within a closed system like your plumbing.

Temperature and Volume: A Direct Relationship

The relationship between water temperature and volume is direct. As the temperature climbs, so does the volume.

While the percentage increase might seem small (approximately 1-2% for a typical residential water heater temperature range), the sheer volume of water in the tank means this expansion generates significant pressure. This pressure needs to be managed, or it will find the weakest point in your plumbing system.

Decoding Water Pressure: Static vs. Dynamic

Water pressure, measured in PSI (pounds per square inch), is the force exerted by water against the walls of your pipes. Understanding different types of water pressure is essential for proper tank selection.

Normal Operating Pressure

Most residential plumbing systems operate within a water pressure range of 40 to 60 PSI. Pressure significantly exceeding this range can strain your pipes and fixtures.

Local plumbing codes often dictate the maximum allowable pressure. It’s crucial to know your home’s water pressure to select the correct expansion tank.

Static Pressure

Static pressure is the water pressure when no water is flowing. It represents the pressure at rest.

You can measure static pressure with a simple pressure gauge attached to an outside faucet or washing machine connection when all other water sources are shut off.

Dynamic Pressure

Dynamic pressure, conversely, is the water pressure when water is flowing through your pipes, such as when you are running a shower or flushing a toilet. Dynamic pressure is typically lower than static pressure due to friction within the pipes.

The Importance of PSI in Tank Selection

The PSI rating of an expansion tank is critical because it indicates the maximum pressure the tank can safely handle. Selecting a tank with an insufficient PSI rating can lead to tank failure and potential water damage.

Conversely, over-specifying the PSI rating might lead to unnecessary cost without added benefit. Match the tank’s PSI rating to your system’s maximum expected pressure, accounting for both static pressure and potential pressure spikes due to thermal expansion. This ensures optimal performance and longevity.

Why Correct Expansion Tank Sizing is Absolutely Crucial

With a solid grasp of thermal expansion and water pressure established, it’s time to address a pivotal question: why does getting the expansion tank size just right matter so much? The answer lies in the potential repercussions of both undersized and oversized tanks, consequences that can range from minor inconveniences to significant plumbing disasters.

The Perils of an Undersized Expansion Tank

An expansion tank that’s too small simply cannot accommodate the increased water volume created by thermal expansion. This seemingly minor miscalculation sets off a chain of undesirable events.

The Pressure Relief Valve: Constant Workout, Shortened Lifespan

The most immediate consequence of an undersized tank is the frequent, and often noisy, activation of the pressure relief valve (PRV). This valve is designed as a safety mechanism, opening to release excess pressure when the system exceeds its safe operating limit. When the expansion tank is too small, the PRV is forced to discharge water repeatedly, every time the water heater cycles.

This constant activation not only wastes water, but also accelerates wear and tear on the valve itself. Eventually, the PRV will fail, potentially leading to a continuous leak and the need for costly repairs.

Plumbing System at Risk: Stress Fractures and Premature Failure

Beyond the PRV, an undersized expansion tank places undue stress on the entire plumbing system. The continuous pressure surges caused by thermal expansion, without adequate accommodation, can weaken pipe joints, fittings, and even the water heater itself.

Over time, this can lead to leaks, bursts, and premature failure of plumbing components. The cost of repairing or replacing damaged pipes and appliances far outweighs the initial investment in a properly sized expansion tank.

Water Hammer and the Symphony of Noises

Another common symptom of an undersized expansion tank is water hammer. This occurs when rapidly closing valves or fixtures cause pressure waves to reverberate through the pipes, creating a loud banging or hammering noise.

While water hammer can be annoying, it’s also a sign of excessive pressure fluctuations that can damage pipes and appliances. Undersized expansion tanks exacerbate this issue by failing to dampen these pressure surges effectively.

The Drawbacks of an Oversized Expansion Tank

While the consequences are less dire than those of an undersized tank, an oversized expansion tank isn’t ideal either. The primary concerns revolve around cost and efficiency.

Unnecessary Expenditure: Paying for Unused Capacity

An oversized tank represents an unnecessary financial investment. You’re paying for capacity you simply don’t need, without gaining any additional benefit. The money could be better spent on other home improvements or maintenance tasks.

Space Inefficiency: A Bulky Fixture

Expansion tanks, particularly larger models, can take up a significant amount of space. An oversized tank occupies valuable real estate that could be used for other purposes. In cramped utility rooms or small homes, this can be a major inconvenience.

In conclusion, proper expansion tank sizing is not merely a recommendation; it’s a necessity for a healthy, efficient, and safe plumbing system. Investing the time and effort to calculate the correct size will prevent costly repairs, conserve water, and ensure the longevity of your plumbing infrastructure.

Undersized expansion tanks, therefore, lead to a cascade of problems best avoided. But what about the opposite scenario? While seemingly less dire, an oversized expansion tank also presents its own set of drawbacks, primarily involving wasted resources and space. With a clear understanding of the potential pitfalls, let’s move on to the practical steps for determining the ideal expansion tank size for your plumbing system.

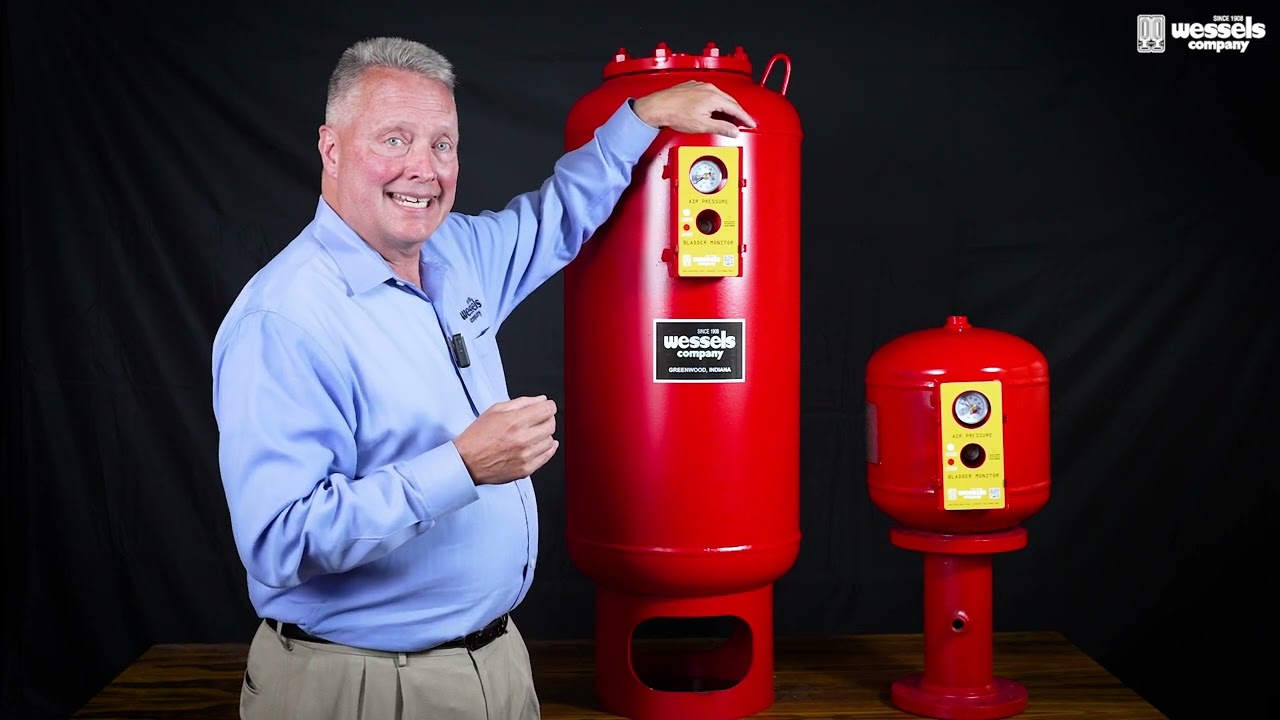

Step-by-Step Guide: Accurately Sizing Your Expansion Tank

Sizing an expansion tank doesn’t require advanced plumbing knowledge, but it does demand precision and attention to detail. By following this step-by-step guide, you can confidently determine the correct tank size for your needs, ensuring optimal plumbing system performance and longevity.

Step 1: Gather Necessary Information

Before you can perform any calculations, you need to collect some crucial data about your water heater and plumbing system. Accuracy here is paramount, as even small errors can lead to incorrect sizing.

Measure the Water Heater’s Tank Capacity

The first piece of information you’ll need is the capacity of your water heater tank in gallons. This is usually clearly marked on a sticker or plate on the water heater itself. Look for a number followed by "gallons" or "gal." If the label is illegible, consult the manufacturer’s specifications or the water heater’s user manual.

Determine the Supply Water Pressure

Next, you must determine your supply water pressure, also known as the cold water pressure. You’ll need a pressure gauge for this. These gauges can be purchased at most hardware stores.

Attach the pressure gauge to an outdoor faucet or a washing machine connection. Ensure no other water is running in the house when you take the reading, as this can affect the accuracy. The reading will give you the static water pressure in pounds per square inch (PSI). Record this number.

Identify the Maximum Operating Temperature

Finally, you need to know the maximum operating temperature of your water heater. This is typically set by the thermostat on the water heater. Common settings range from 120°F to 140°F. Consult your water heater’s manual or look for the temperature dial on the unit itself.

Step 2: Perform the Sizing Calculation

With all the necessary information in hand, you can now perform the expansion tank sizing calculation. Here’s the formula:

Tank Volume = (Heater Volume Expansion Factor) / ((Maximum System Pressure / Initial System Pressure) – 1)

**

Let’s break this down and illustrate its use with examples.

Formula Explanation

• Tank Volume: This is the unknown variable we’re trying to find. It represents the required volume of the expansion tank in gallons.
• Heater Volume: This is the capacity of your water heater in gallons, which you measured in Step 1.
• Expansion Factor: This factor accounts for the increase in water volume due to thermal expansion. It depends on the difference between the cold water temperature and the maximum hot water temperature. Consult an expansion factor chart (easily found online) based on your cold water temperature and the maximum temperature of your water heater.
• Maximum System Pressure: This is the highest pressure your plumbing system can safely handle, which is usually the pressure relief valve setting, typically 75 PSI.
• Initial System Pressure: This is your supply water pressure, which you measured in Step 1.

Example Calculation

Let’s consider an example:

• Heater Volume: 50 gallons
• Expansion Factor: 0.02 (based on a cold water temperature of 60°F and a maximum hot water temperature of 140°F)
• Maximum System Pressure: 75 PSI
• Initial System Pressure: 60 PSI

Plugging these values into the formula:

Tank Volume = (50 gallons** 0.02) / ((75 PSI / 60 PSI) – 1)

Tank Volume = 1 / (1.25 – 1)

Tank Volume = 1 / 0.25

Tank Volume = 4 gallons

In this example, you would need an expansion tank with a minimum capacity of 4 gallons.

Another Example

Let’s consider a second example:

• Heater Volume: 80 gallons
• Expansion Factor: 0.015 (based on a cold water temperature of 50°F and a maximum hot water temperature of 130°F)
• Maximum System Pressure: 75 PSI
• Initial System Pressure: 45 PSI

Plugging these values into the formula:

Tank Volume = (80 gallons * 0.015) / ((75 PSI / 45 PSI) – 1)

Tank Volume = 1.2 / (1.67 – 1)

Tank Volume = 1.2 / 0.67

Tank Volume = 1.79 gallons

In this example, you would need an expansion tank with a minimum capacity of approximately 1.8 gallons.

Step 3: Choosing the Right Expansion Tank

After calculating the required tank volume, you’ll need to select an expansion tank that meets your needs.

Consider Pressure and Temperature Ratings

First and foremost, ensure that the tank’s maximum working pressure and temperature ratings exceed those of your water heater and plumbing system. These ratings are clearly marked on the tank. Choosing a tank with insufficient ratings can lead to premature failure and potential hazards.

Select Sufficient Capacity

Choose a tank with a capacity that is equal to or slightly larger than the calculated tank volume. It’s generally better to err on the side of caution and select a slightly larger tank if the calculated volume falls between standard sizes.

By carefully following these steps, you can confidently determine the appropriate expansion tank size for your plumbing system, ensuring optimal performance and preventing costly problems down the line.

DIY Installation Guide: Safely Installing Your New Expansion Tank

Now that you’ve accurately sized your expansion tank, it’s time for installation. While installing an expansion tank is a manageable DIY project for many homeowners, it’s crucial to prioritize safety and follow each step meticulously. This section provides a detailed guide to help you through the process. If at any point you feel uncomfortable or encounter complexities beyond your skill level, don’t hesitate to call a licensed plumber.

Safety First: Essential Precautions Before You Begin

Before touching any plumbing components, safety must be your utmost concern. Neglecting these precautions can lead to serious injuries or damage to your property.

• Turn off the water supply. Locate the main water shut-off valve for your home and turn it off completely. This will prevent flooding during the installation process.

• Depressurize the system. Open a faucet at the lowest point in your house to relieve any residual water pressure in the pipes. This minimizes the risk of spraying water when you disconnect existing plumbing.

• Wear safety glasses. Protect your eyes from debris or splashes that may occur during the installation.

• Gather your tools. Ensure you have all the necessary tools readily available, including pipe wrenches, Teflon tape, a bucket, and possibly a pipe cutter (depending on your existing plumbing).

Step-by-Step Installation Guide

With safety addressed, let’s move on to the actual installation process. This guide assumes a typical installation scenario; your specific setup may require slight adjustments.

1. Locate the Installation Point. The expansion tank should be installed on the cold-water line leading to the water heater. Ideally, it should be as close to the water heater as possible.

2. Prepare the Pipe. Clean the pipe where you will be connecting the expansion tank. If necessary, use a pipe cutter to create a clean, straight cut.

3. Apply Teflon Tape. Wrap Teflon tape clockwise around the threads of the expansion tank’s connection fitting. This will create a watertight seal. Several wraps are usually sufficient.

4. Connect the Expansion Tank. Carefully screw the expansion tank onto the prepared pipe fitting. Tighten it securely with a pipe wrench, but avoid overtightening, which can damage the threads.

5. Secure the Tank (if needed). Larger expansion tanks may require additional support. Follow the manufacturer’s instructions for proper mounting. This may involve straps or brackets to secure the tank to a nearby wall.

Checking for Leaks and Ensuring Proper Functioning

The final step is to verify that the installation is leak-free and functioning correctly.

• Slowly turn on the water supply. Open the main water shut-off valve gradually. This will allow the system to pressurize slowly and minimize the risk of leaks.

• Inspect all connections for leaks. Carefully examine the connection between the expansion tank and the pipe for any signs of water leakage. If you detect a leak, immediately turn off the water supply and tighten the connection further.

• Check the pressure relief valve. Ensure the pressure relief valve on your water heater is not dripping. If it is, it could indicate a problem with the installation or an underlying pressure issue.

• Monitor the system. Keep an eye on the expansion tank and the water heater for the next few days to ensure there are no leaks or other problems.

By following these steps diligently, you can confidently install your new expansion tank and enjoy a properly functioning plumbing system. Remember, if you encounter any difficulties or uncertainties, seeking professional help is always the safest option.

Troubleshooting Common Expansion Tank Problems: A Quick Fix Guide

Even with correct sizing and careful installation, expansion tanks can sometimes develop problems. Recognizing and addressing these issues promptly can prevent more significant plumbing damage and costly repairs. Here’s a guide to troubleshooting some common expansion tank ailments.

Dealing with Excessive Water Pressure

Excessive water pressure, often manifested as banging pipes or a constantly running pressure relief valve, can stem from several causes, with a faulty expansion tank being a prime suspect. If your pressure gauge reads consistently high, even when no water is being used, it’s time for investigation.

Check the Expansion Tank’s Air Charge

The most common cause of excessive pressure related to the expansion tank is a loss of air charge. Expansion tanks rely on a compressed air cushion to absorb water volume changes.

To check this:

1. Shut off the water supply to the water heater.
2. Open a hot water faucet to relieve pressure.
3. Locate the Schrader valve (like on a tire) on the expansion tank.
4. Use a tire pressure gauge to check the air pressure.

The pressure should typically match the incoming water pressure (usually around 40-60 PSI). If the pressure is significantly lower or if water comes out of the valve, the tank is likely waterlogged and needs replacement.

What if the Tank is Fine?

If the expansion tank checks out, the problem could lie elsewhere:

• Pressure Reducing Valve (PRV) Malfunction: If your home has a PRV, it may be failing and allowing excessively high pressure into your plumbing system. A plumber can test and replace this valve.
• Municipal Water Supply Issues: In rare cases, the municipal water supply pressure can spike. Contact your water company to inquire about any known issues.

Addressing a Leaking Pressure Relief Valve

A dripping or constantly leaking pressure relief valve (PRV) on your water heater is a clear sign something is amiss. The PRV is designed to release pressure when it exceeds a safe limit, preventing explosions. However, constant activation points to an underlying problem.

Expansion Tank Malfunction

The most frequent culprit for a leaking PRV is, again, a failing expansion tank. When the tank loses its air charge, it can’t absorb the expanding water, causing the pressure to rise until the PRV activates. Follow the steps above to check the tank’s air charge and replace it if needed.

Other Potential Causes

If the expansion tank is functioning correctly, consider these possibilities:

• Excessive Water Heater Temperature: A thermostat set too high can cause excessive thermal expansion, overwhelming even a properly functioning expansion tank. Check and adjust the thermostat to the recommended setting (usually around 120°F).
• Faulty Pressure Relief Valve: The valve itself may be defective and opening prematurely. A plumber can test and replace the PRV.

Diagnosing a Waterlogged Expansion Tank

A waterlogged expansion tank is one that has lost its air cushion and is filled entirely with water. This condition renders the tank useless, as it can no longer absorb thermal expansion.

How to Identify a Waterlogged Tank

• Weight: A waterlogged tank will feel significantly heavier than an empty or properly charged tank.
• Sound: Tapping on the tank may produce a hollow sound at the top (if there’s any remaining air) and a dull thud at the bottom (where it’s filled with water).
• Pressure Test: As described above, checking the Schrader valve will reveal water instead of air.

The Solution: Replacement

Unfortunately, a truly waterlogged expansion tank cannot be repaired. The internal bladder has likely failed, allowing water to fill the air chamber. Replacement is the only effective solution. Be sure to properly size the new tank based on your water heater’s capacity.

When to Call in the Pros: Recognizing the Limits of DIY Plumbing

While this guide empowers you to tackle expansion tank sizing and installation, it’s crucial to recognize when a DIY approach might be inadvisable. Plumbing, while often manageable for homeowners, can quickly become complex and potentially dangerous. Knowing your limitations and when to call a professional is paramount for your safety and the integrity of your home’s plumbing system.

Comfort Level is Key

DIY projects should always align with your skillset and comfort level. If the thought of soldering pipes, working with gas lines (if near the water heater), or even just maneuvering in tight spaces fills you with anxiety, it’s a clear sign to call a plumber.

There’s no shame in acknowledging limitations; it’s a sign of responsible homeownership. Plumbing mistakes can lead to costly repairs and even water damage, easily outweighing the cost of professional assistance.

Dealing with Complex Plumbing Systems

Modern plumbing systems can be intricate, incorporating features like recirculation pumps, multiple zones, and advanced control systems. If your system deviates significantly from a standard setup, attempting DIY installation or troubleshooting could inadvertently cause further complications.

Before undertaking any work, carefully assess the complexity of your system. If you encounter unfamiliar components or wiring, err on the side of caution and consult a qualified plumber. They possess the knowledge and experience to navigate these complexities safely and effectively.

Suspecting Underlying Water Pressure Problems

Erratic or persistently high water pressure can indicate more than just a faulty expansion tank. It could stem from a malfunctioning pressure reducing valve (PRV), mineral buildup in pipes, or even issues with the municipal water supply.

Addressing these underlying problems requires specialized diagnostic tools and expertise that the average homeowner typically lacks. A professional plumber can accurately diagnose the root cause of the problem and implement the appropriate solution, ensuring the long-term health of your plumbing system.

Attempting to fix the problem without understanding its origin can lead to further damage and increased repair costs. Investing in a professional diagnosis is often the most cost-effective approach in the long run.

Safety First

Working with plumbing involves inherent risks, including the possibility of burns from hot water, electric shock from faulty wiring near the water heater, and exposure to potentially harmful materials.

Prioritizing safety should always be your top concern. If you’re unsure about any aspect of the installation process or if you lack the necessary safety equipment (e.g., safety glasses, gloves), it’s best to leave the job to a professional.

Plumbers are trained to identify and mitigate these risks, ensuring a safe and efficient installation process. Furthermore, improper installation can void warranties on your water heater or expansion tank, leaving you liable for any subsequent damage.

So, there you have it! Figuring out how to size expansion tank doesn’t have to be a mystery anymore. Go ahead, give it a shot, and let us know how it goes!
