Reciprocating Saw Mechanism: Secret Guide Revealed

Unveiling the Inner Workings of a Reciprocating Saw

The reciprocating saw, often called a Sawzall after a popular Milwaukee Electric Tool brand, is a ubiquitous power tool prized for its versatility and brute cutting force. From demolition sites to remodeling projects and even automotive repair shops, this saw tackles materials that other tools struggle with. This guide aims to move beyond surface-level operation and delve into the intricate mechanical heart of the reciprocating saw.

Instead of focusing on cutting techniques or project-specific applications, we’ll dissect the tool’s internal components and understand how they orchestrate the powerful reciprocating motion that defines this machine.

Who Will Benefit from This Guide?

This exploration is designed for a diverse audience:

• Do-it-yourselfers: Those who want to understand their tools better, enabling informed maintenance and repair decisions.
• Mechanics: Professionals needing to diagnose and fix malfunctioning saws efficiently.
• Engineers: Individuals seeking a deeper understanding of the mechanical principles at play within the tool.

What This Guide Covers

This comprehensive guide will explore the following key areas:

• Core Components: Identifying and describing the most crucial parts that enable the saw’s function.
• Power Translation: Examining how the motor’s rotational energy is converted into the blade’s linear motion.
• Cut Control: Analyzing the mechanisms that govern cutting performance, such as variable speed and gearboxes.
• Advanced Features: Evaluating how features like orbital action and counterbalance mechanisms enhance performance and usability.

Core Components: The Heart of the Reciprocating Saw

With a foundational understanding of the guide’s purpose established, let’s now embark on an exploration of the core components that breathe life into the reciprocating saw. These fundamental elements, working in concert, are what enable the tool to perform its signature cutting action. We will focus on the Mechanism, Motor, and Blade for this part.

Understanding the Reciprocating Saw Mechanism

The mechanism of a reciprocating saw is the ingenious system that converts rotational motion into the linear, back-and-forth movement of the blade. This seemingly simple action is achieved through a carefully orchestrated arrangement of interconnected parts.

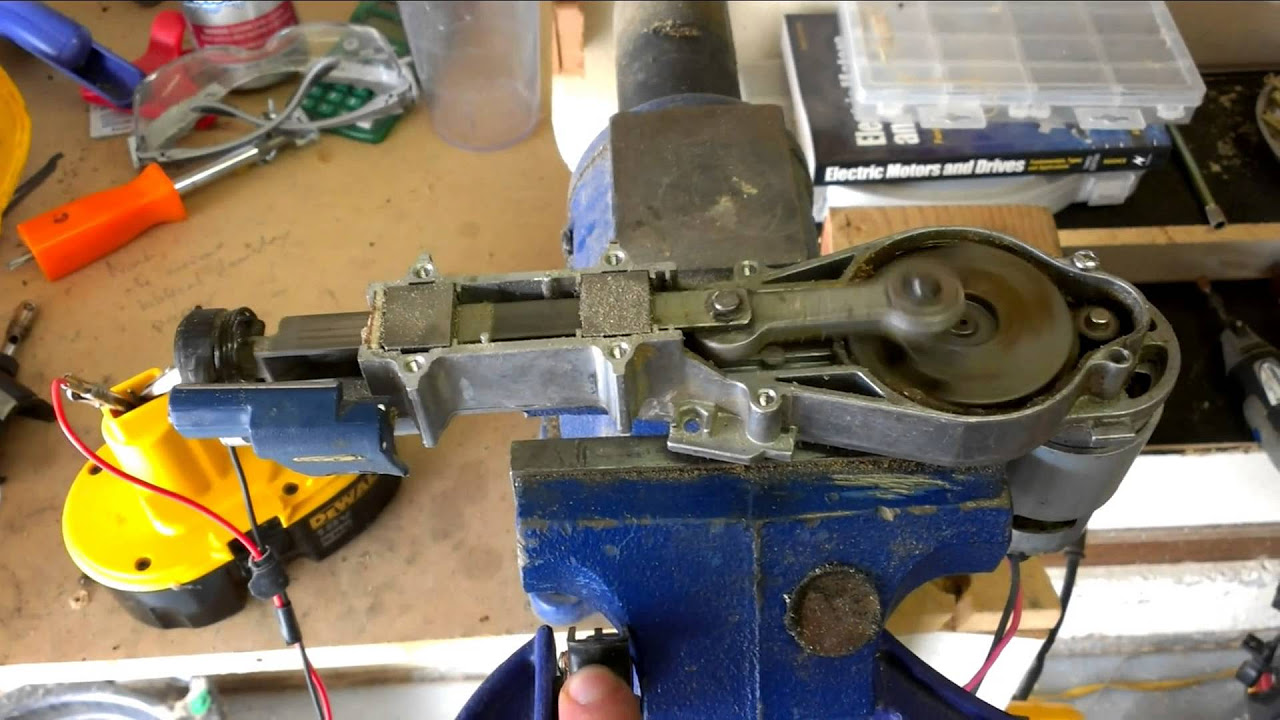

At its core, the mechanism typically involves a crankshaft, piston, and connecting rod. As the motor spins the crankshaft, the offset design of the crank forces the piston to move linearly within a cylinder. This linear motion is then transmitted to the blade, causing it to reciprocate. The specific design and arrangement can vary slightly between models and manufacturers, but the underlying principle remains consistent: transforming rotational energy into linear cutting force.

The Power Source: The Motor’s Role

The motor is the powerhouse of the reciprocating saw, responsible for generating the rotational energy that drives the entire mechanism. Two primary types of motors are commonly employed: universal motors and brushless motors.

Universal motors are known for their high power-to-weight ratio and ability to operate on both AC and DC power. They are a cost-effective choice but tend to be louder and require more maintenance due to the presence of brushes that wear over time.

Brushless motors, on the other hand, offer increased efficiency, longer lifespan, and reduced noise levels. They utilize electronic control systems to manage motor operation, eliminating the need for brushes. This translates to less friction, less heat generation, and ultimately, a more durable and reliable motor.

Several factors influence motor performance, including voltage, amperage, and motor speed (RPM). Higher voltage and amperage typically result in more power, allowing the saw to tackle tougher materials with greater ease. Variable speed control, as we’ll explore later, allows users to adjust the motor’s RPM to match the specific cutting requirements of the task at hand.

The Cutting Edge: Blade Types and Attachment

The blade is the business end of the reciprocating saw, directly responsible for making the cut. A wide variety of blades are available, each designed for specific materials and applications.

Blades are typically categorized by their material composition (e.g., high-speed steel, bi-metal, carbide-tipped), tooth count (teeth per inch or TPI), and overall length. High-speed steel blades are suitable for cutting softer materials like wood and plastic. Bi-metal blades, with their combination of high-speed steel teeth and a flexible alloy steel body, offer enhanced durability and resistance to breakage when cutting through tougher materials like metal. Carbide-tipped blades are the most durable option, capable of cutting through extremely hard materials such as cast iron and tile.

The number of teeth per inch (TPI) influences the smoothness and speed of the cut. Lower TPI blades are more aggressive and cut faster, but they produce a rougher finish. Higher TPI blades create a smoother finish but cut more slowly.

Blade attachment is typically achieved via a clamp or a tool-less chuck. The clamp secures the blade with a screw or lever, while the tool-less chuck allows for quick and easy blade changes without the need for any additional tools.

Selecting the right blade is crucial for achieving optimal cutting performance and extending the life of both the blade and the saw. Using the wrong blade can result in slow cutting, blade breakage, and even damage to the saw itself.

Translating Power to Motion: Stroke Length, Piston, Crankshaft

With a foundational understanding of the guide’s purpose established, let’s now embark on an exploration of the core components that breathe life into the reciprocating saw. These fundamental elements, working in concert, are what enable the tool to perform its signature cutting action. We will focus on the Mechanism, Motor, and Blade for this part.

Now, let’s delve deeper into the mechanism itself, focusing on how that raw power from the motor is converted into the aggressive, back-and-forth motion we rely on. The key players in this transformation are the stroke length, the piston, and the crankshaft. These components are inextricably linked, working in harmony to deliver the saw’s cutting action.

Understanding Stroke Length

Stroke length is a critical specification for any reciprocating saw. It dictates the distance the blade travels during each cutting cycle.

Defining and Measuring Stroke Length

The stroke length is simply the distance, usually measured in inches or millimeters, that the blade travels forward and backward during one complete cycle. A longer stroke length means the blade covers more material per cycle.

Impact on Cutting Performance

The stroke length directly impacts cutting speed and efficiency. A longer stroke, generally speaking, allows for faster cutting, especially in thicker materials.

However, it’s not always a simple equation. A shorter stroke can sometimes be more effective in tighter spaces or when cutting more delicate materials.

Matching Stroke Length to Material

The optimal stroke length is also related to the type of material being cut. Longer strokes are often preferred for wood and softer materials, allowing for aggressive material removal. Shorter strokes can be advantageous for metal or other harder materials, providing more control and reducing the risk of binding or damaging the blade.

The Piston’s Vital Role

The piston is a crucial link in the chain, directly responsible for translating the crankshaft’s motion into the reciprocating movement of the blade.

How the Piston Enables Reciprocation

The piston slides back and forth within a cylinder. This linear movement, driven by the rotating crankshaft, directly powers the blade’s reciprocating action.

Material and Construction

Pistons are typically made from durable materials like hardened steel or aluminum alloys. These materials are chosen for their ability to withstand the constant friction and stress of the reciprocating motion. Precise machining ensures a tight fit within the cylinder, minimizing energy loss and maximizing efficiency.

The Piston-Crankshaft Connection

The piston is connected to the crankshaft via a connecting rod. This rod transfers the force from the crankshaft’s rotation to the piston, causing it to move linearly. The design of this connection is critical for smooth, efficient operation.

The Crankshaft: Converting Rotation to Linear Motion

The crankshaft is the heart of the motion conversion process. It’s the component that transforms the motor’s rotational energy into the linear motion required for cutting.

The Conversion Process

The crankshaft is designed with an offset or eccentric section. As the motor spins the crankshaft, this offset section forces the connecting rod and, subsequently, the piston to move back and forth in a linear fashion. This clever design is the key to the reciprocating saw’s functionality.

Design and Material Considerations

Crankshafts are subjected to immense stress and wear. They are typically made from high-strength steel alloys, carefully forged and machined to ensure durability and precision. The design must also account for balance to minimize vibration and ensure smooth operation.

Connecting Motor and Crankshaft

The crankshaft is directly connected to the motor, receiving the rotational power that drives the entire mechanism. The connection is typically a direct coupling or a geared system, depending on the saw’s design and power requirements. The robustness of this connection is critical for transmitting power efficiently and reliably.

Controlling the Cut: Variable Speed and Gearbox

The reciprocating saw, for all its brute force, requires a degree of finesse to achieve optimal cutting results. This control is largely dictated by two key systems: variable speed control and the gearbox. These components work in tandem to allow the user to tailor the saw’s performance to the specific demands of the material being cut.

Understanding Variable Speed Control

Variable speed control is a fundamental feature that allows the operator to adjust the speed of the blade’s reciprocation. This isn’t just about convenience; it’s about optimizing cutting performance and extending blade life.

Types of Speed Control Mechanisms

Reciprocating saws employ various methods to achieve variable speed. The most common is a trigger-based system, where the depth of the trigger pull directly corresponds to the motor’s speed. More advanced models may incorporate a dial or electronic control, providing a wider range of speed settings and potentially more precise adjustments. Some even offer programmable speed settings.

Material-Specific Speed Selection

The importance of selecting the correct speed cannot be overstated. For instance, cutting metal generally requires a slower speed to prevent overheating the blade and work hardening the material. Conversely, softer materials like wood might benefit from a higher speed for faster cutting, although careful attention must be paid to tearout and splintering. Precision is key when dealing with certain materials.

Motor Impact

The variable speed control directly influences the motor’s operation. By modulating the voltage supplied to the motor, the speed control effectively manages the power output and torque. At lower speeds, the motor may require additional cooling to prevent overheating, which is why some saws have advanced cooling systems. Overloading the motor at a low speed can significantly reduce its lifespan.

The Role of the Gearbox

The gearbox is an unsung hero within the reciprocating saw, quietly performing the crucial task of matching the motor’s output to the demands of the cutting application. It acts as an intermediary, adjusting both torque and speed to optimize cutting efficiency.

Torque and Speed Adjustment

The primary function of the gearbox is to alter the relationship between torque and speed. A higher gear ratio reduces the output speed but increases the torque, which is beneficial when cutting through dense or resistant materials. Conversely, a lower gear ratio increases the output speed at the expense of torque, suitable for faster cutting in less demanding materials.

Gear Ratios

Different gear ratios significantly affect the saw’s performance. A low gear ratio provides high speed and is appropriate for quickly cutting soft materials. A high gear ratio provides the torque needed for hard materials. Understanding these differences is key to effective saw usage.

Lubrication and Maintenance

Gearboxes require regular lubrication to function smoothly and prevent premature wear. The type of lubricant specified by the manufacturer should be strictly adhered to. Over time, the lubricant can degrade, leading to increased friction and potential damage. Regular inspection and maintenance, including lubricant replacement, are crucial for extending the lifespan of the gearbox and, consequently, the entire reciprocating saw.

Advanced Features: Enhancing Performance

Beyond the core components and speed controls, many reciprocating saws boast advanced features designed to boost cutting performance and user comfort. Two of the most notable are orbital action and counterbalance mechanisms. While not always considered essential, these features significantly contribute to a more efficient and enjoyable cutting experience.

Orbital Action: Aggressive Cutting Made Easier

Orbital action introduces an elliptical, rather than purely linear, movement to the blade. This means the blade moves forward into the material and slightly up and down during each stroke.

This seemingly small change dramatically affects cutting speed and aggressiveness.

How Orbital Action Works

The orbital motion is achieved through a specialized cam or linkage system within the saw’s mechanism. As the crankshaft rotates, it not only moves the piston back and forth but also imparts a slight vertical oscillation to the blade holder.

This creates a more aggressive "biting" action, removing material more quickly.

Orbital Action Settings and Applications

Many reciprocating saws offer multiple orbital action settings, ranging from no orbital action (purely linear) to a high degree of orbital motion.

• No orbital action is best suited for cutting metal or performing delicate cuts where precision is paramount.

• Low orbital action settings are ideal for cutting hardwoods or plastics, offering a balance of speed and control.

• High orbital action is reserved for aggressive demolition work and rapid cutting of soft materials like wood.

Benefits and Drawbacks

The primary benefit of orbital action is increased cutting speed, particularly in wood and other soft materials. It allows for faster material removal.

However, orbital action can also lead to increased vibration, rougher cuts, and a higher risk of tearout, especially when used improperly or with the wrong blade. It can also reduce blade life if not used judiciously.

Therefore, understanding when and how to use orbital action is crucial for maximizing its benefits while minimizing its drawbacks.

Counterbalance Mechanism: Taming the Vibration Beast

Reciprocating saws are inherently prone to vibration due to the rapid back-and-forth motion of their internal components. This vibration can lead to operator fatigue, reduced accuracy, and even long-term health issues.

A counterbalance mechanism is designed to mitigate these effects.

Vibration Reduction

The counterbalance mechanism works by introducing a counterweight that moves in the opposite direction of the blade and piston. This counterweight is synchronized with the saw’s reciprocating motion.

By carefully calibrating the weight and timing of this counter-movement, the mechanism effectively cancels out a significant portion of the vibration generated by the saw.

Types of Counterbalance Systems

Different manufacturers employ various approaches to counterbalance design. Some use a simple, single counterweight linked directly to the crankshaft.

Others utilize more complex systems with multiple counterweights and dampening elements for enhanced vibration reduction. The effectiveness of these systems can vary significantly depending on the design and quality of the components.

Impact on User Experience

The impact of a well-designed counterbalance mechanism on the user experience is significant. Reduced vibration translates to increased comfort, better control, and less fatigue, allowing the operator to work for longer periods with greater accuracy.

It also contributes to a longer tool life by reducing stress on the internal components.

So there you have it! Hopefully, you now have a better handle on the reciprocating saw mechanism. Now get out there and put that knowledge to use. Happy sawing!
