Partially Threaded Screws: The Hidden Design Secrets!

Unveiling the Secrets of Partially Threaded Screws

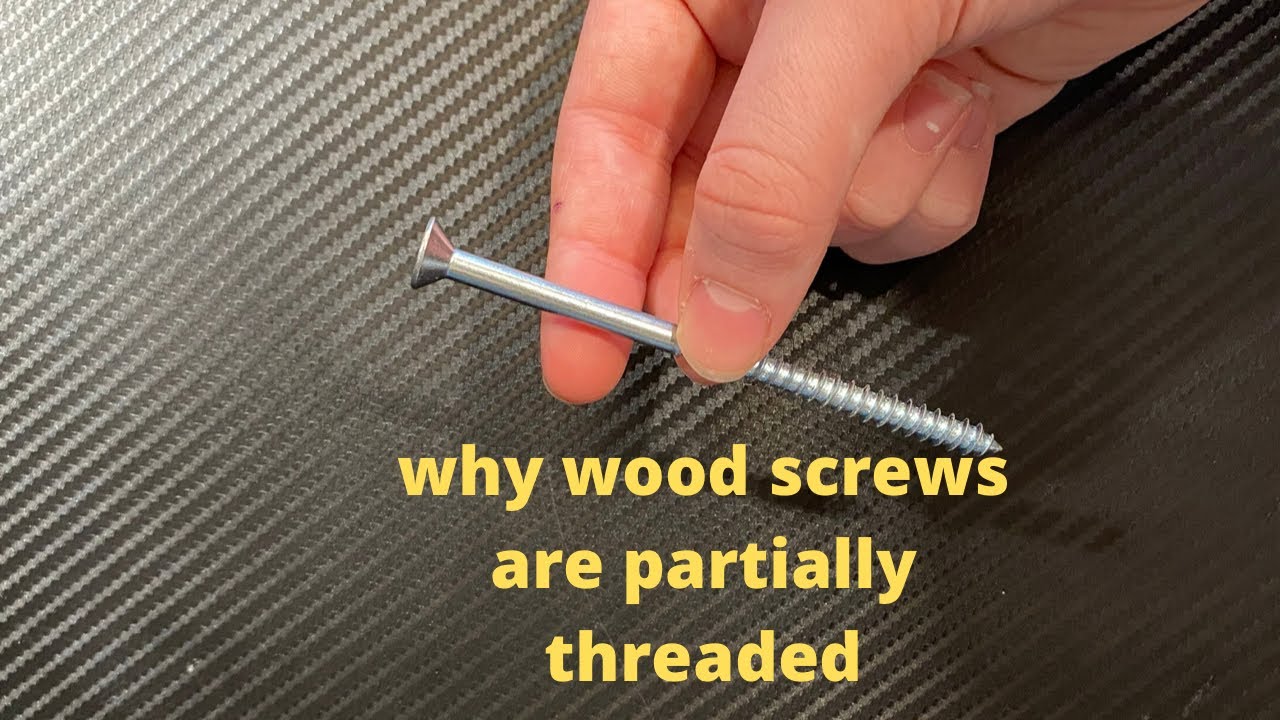

Have you ever noticed that some screws are only threaded along part of their length, featuring a smooth, unthreaded section known as the shank? It’s a common observation in various applications, from assembling furniture to constructing complex machinery.

But this begs the question: why aren’t all screws fully threaded?

The Curious Case of the Missing Threads

At first glance, it might seem more logical for screws to have threads along their entire length. After all, more threads would seemingly equate to a stronger grip. However, the world of mechanical engineering often defies simple intuition. The decision to use a partially threaded screw is a deliberate design choice, carefully considered based on the specific demands of the application.

Engineering Intent Behind the Design

This article delves into the engineering principles that dictate when and why partially threaded screws are preferred over their fully threaded counterparts. We will explore how the presence of the smooth shank impacts crucial factors like:

• Shear strength, which is the screw’s ability to resist forces acting laterally.
• The minimization of stress concentration to avoid premature failure.
• Optimizing tensile strength in applications primarily loaded in tension.

In essence, we will uncover the hidden advantages that partially threaded screws offer in specific scenarios. Understanding these advantages is crucial for engineers and anyone involved in design or construction to ensure optimal performance and longevity of their projects.

Understanding Threaded Fasteners and Partially Threaded Screws

Having established the puzzle of the partially threaded screw, we now need to define our terms and delve deeper into the core concepts. Before we can appreciate the engineering rationale behind their design, it’s crucial to understand the broader world of threaded fasteners and the specific characteristics that define a partially threaded screw.

Threaded Fasteners: The Linchpins of Modern Assembly

Threaded fasteners, encompassing screws, bolts, and studs, are fundamental components in countless applications. Their primary purpose is to join two or more materials together mechanically, providing a clamp force that resists separation. They achieve this by utilizing helical threads that engage with corresponding threads in the materials being joined, or with a nut in the case of bolts.

The genius of the threaded fastener lies in its ability to convert rotational motion into linear force, providing controlled and adjustable clamping pressure. Different types of threaded fasteners exist, each optimized for specific materials, loads, and environmental conditions. From the humble wood screw to high-strength alloy steel bolts used in aerospace, the diversity of threaded fasteners reflects the varied demands of modern engineering.

Dissecting the Partially Threaded Screw

What, then, distinguishes a partially threaded screw? Simply put, it is a fastener with threads covering only a portion of its shank, leaving a smooth, unthreaded section between the head and the threaded portion. This smooth shank is the defining characteristic and the key to understanding its unique advantages.

Types of Partially Threaded Screws

Partially threaded screws are not a monolithic category; they come in various forms tailored to specific applications.

• Wood Screws: Commonly used in woodworking, these screws often feature a partially threaded shank designed to draw two pieces of wood tightly together.

• Metal Screws: These screws are designed for use in metal, and the partially threaded shank can provide benefits such as increased shear strength and reduced stress concentration, as we will explore later.

Anatomy of a Partially Threaded Screw

A typical partially threaded screw consists of the following key components:

• Head: The enlarged section at one end that provides a bearing surface and allows for driving the screw.

• Shank: The smooth, unthreaded portion of the screw’s body. This section is critical to the screw’s performance.

• Threads: The helical ridges that engage with the mating material, providing the clamping force.

• Point: The tip of the screw, which may be pointed, blunt, or self-tapping depending on the application.

Visualizing the Design

A clear diagram illustrating these components is invaluable in understanding the design.
(Include image of labeled partially threaded screw with Head, Shank and Threads)
The next section will investigate in detail the engineering advantages that stem from this seemingly simple, yet ingenious design, and explore why in certain critical applications, the partially threaded screw reigns supreme.

The Engineering Advantages of Partially Threaded Screws

The decision to employ a partially threaded screw is rarely arbitrary. It stems from a careful consideration of the forces acting on the joint and the materials being joined. The presence of the unthreaded shank offers distinct engineering advantages that fully threaded screws simply cannot replicate. These advantages manifest in increased shear strength, reduced stress concentration, optimized tensile strength, and improved joint alignment.

Shear Strength and the Role of the Shank

Shear strength refers to a fastener’s ability to resist forces acting parallel to the joint. In applications where the joint is subjected to lateral forces, partially threaded screws offer a significant advantage.

The unthreaded shank, having a larger diameter than the thread root diameter, possesses a greater cross-sectional area. This larger area directly translates to a higher shear resistance.

Imagine a scenario where a shelf is attached to a wall using screws. The weight on the shelf creates a shear force on the screws, attempting to slide the shelf downwards.

A partially threaded screw, with its shank spanning the shear plane (the interface between the shelf and the wall), will withstand a greater shear load before deformation or failure compared to a fully threaded screw of the same nominal diameter.

The smooth shank essentially acts as a dowel pin, providing robust resistance to lateral movement. This is why partially threaded screws are often favored in applications where shear loads are a primary concern, such as structural connections and machinery assembly.

Minimizing Stress Concentration

Stress concentration is a phenomenon where stress is amplified at specific points within a material, particularly around geometric discontinuities like holes, corners, and thread roots.

The roots of screw threads, being sharp indentations, are prime locations for stress concentration. When a fastener is under load, the stress is not evenly distributed across its cross-section. Instead, it tends to accumulate at these thread roots.

High stress concentration can lead to premature fatigue failure, especially under cyclic loading conditions. This means the screw can break even if the average stress is well below the material’s ultimate strength.

The smooth shank of a partially threaded screw helps to mitigate this problem. By ensuring the shank, rather than the threads, bears the brunt of the shear load, the stress is distributed more evenly along the fastener’s body.

This reduced stress concentration minimizes the risk of fatigue failure, extending the lifespan of the joint and improving its overall reliability.

This is particularly critical in applications involving vibration or fluctuating loads, such as automotive components or machinery with moving parts.

Optimizing Tensile Strength

While the shank enhances shear strength, the threads are responsible for generating the clamping force required to hold the materials together in tension.

In applications primarily loaded in tension, the threads carry the axial load, pulling the materials together. The role of the shank here is slightly different; it allows for more precise control over the clamping force.

By ensuring that the threaded portion is fully engaged within the receiving material, and the shank passes freely through the top material, the clamping force is concentrated at the interface.

This maximizes the friction between the joined surfaces, preventing slippage and ensuring a secure connection. Furthermore, overtightening is less likely to strip the threads if the shank is bearing a portion of the tensile load.

Essentially, the shank acts as a stop, preventing excessive compression and maintaining optimal clamping force.

Enhanced Joint Alignment

A subtle but valuable advantage of partially threaded screws lies in their ability to aid joint alignment during assembly.

The smooth shank can act as a pilot, guiding the screw through the first material and into the second.

This is particularly helpful when working with pre-drilled holes or when joining multiple components.

The shank allows for slight adjustments before the threads engage, ensuring that the joint is properly aligned before final tightening.

This can save time and effort during assembly, especially in applications where precision is crucial. Furthermore, the accurate alignment ensures consistent and even stress distribution across the joint, contributing to its overall strength and stability.

Specific Applications of Partially Threaded Screws

The theoretical advantages outlined—enhanced shear strength, minimized stress concentration, optimized tensile strength, and improved joint alignment—translate directly into practical benefits in numerous applications. Partially threaded screws aren’t merely a design quirk; they are a deliberate choice optimized for specific performance criteria across various industries.

Woodworking: Clamping Force and Joint Integrity

Woodworking stands out as a prime example where partially threaded screws demonstrate their superior performance. The ubiquitous wood screw, often partially threaded, owes its effectiveness to the unique properties of wood and the demands of wood joinery.

Preventing Thread Stripping in Wood

Unlike metal, wood is a relatively soft and yielding material. When a fully threaded screw is driven into wood, the threads engage along the entire length of the screw, creating friction and potentially stripping the wood fibers, especially in softwood applications.

A partially threaded wood screw mitigates this issue by employing its unthreaded shank to clamp the wood pieces together.

The threads engage only in the receiving piece of wood (the piece furthest from the screw head), while the smooth shank passes through the first piece. As the screw is tightened, the threads pull the receiving piece towards the first, and the shank bears against the first piece, generating significant clamping force.

The Pull-Down Effect

This "pull-down effect" is crucial in woodworking. It ensures a tight, secure joint by compressing the wood fibers and eliminating gaps between the joined pieces. A fully threaded screw, in contrast, would simply bind along its entire length, failing to achieve the same level of compressive force and increasing the risk of a weaker, less durable joint.

Partially threaded screws are particularly valuable when joining hardwoods where the threads can bite more aggressively without stripping, thus creating a robust connection, and in situations where aesthetics matter.

The smooth shank allows for a flush or countersunk screw head, providing a clean and professional finish.

Metalworking: Strength and Stress Distribution

Metalworking also benefits significantly from the strategic use of partially threaded screws, especially in applications demanding high shear strength and resistance to fatigue failure.

Shear Strength in Structural Applications

In metal structures and machinery, connections are often subjected to substantial shear forces. Partially threaded screws, with their enhanced shear strength due to the larger cross-sectional area of the shank, are frequently preferred in these scenarios.

Consider a steel bracket attached to a machine frame. The bracket is designed to support a heavy component, subjecting the screws to lateral forces.

A partially threaded screw, with its shank spanning the shear plane between the bracket and the frame, will provide superior resistance to shear compared to a fully threaded screw of the same size.

This is because the shank, acting as a solid pin, can withstand greater lateral loads before yielding or fracturing.

Managing Stress Concentration

Furthermore, partially threaded screws play a crucial role in mitigating stress concentration in metal components. Stress concentration occurs at sharp corners or geometric discontinuities, such as the thread roots of a screw, where stress levels can be significantly higher than the average stress in the material.

This elevated stress can lead to premature fatigue failure, especially under cyclic loading conditions.

The smooth shank of a partially threaded screw helps to distribute the stress more evenly across the joint, reducing the peak stress at the thread roots.

By minimizing stress concentration, partially threaded screws enhance the fatigue life of the connection and improve the overall reliability of the metal structure.

Clamping Force Optimization

While shear strength and stress distribution are key, clamping force is also a critical consideration in metalworking applications. Partially threaded screws allow for precise control over the clamping force, ensuring optimal performance. The shank’s consistent diameter facilitates accurate torque application, translating to a predictable and reliable clamping force that firmly secures the joined components.

The theoretical advantages outlined—enhanced shear strength, minimized stress concentration, optimized tensile strength, and improved joint alignment—translate directly into practical benefits in numerous applications. Partially threaded screws aren’t merely a design quirk; they are a deliberate choice optimized for specific performance criteria across various industries.

Woodworking stands out as a prime example where partially threaded screws demonstrate their superior performance. The ubiquitous wood screw, often partially threaded, owes its effectiveness to the unique properties of wood and the demands of wood joinery.

Preventing Thread Stripping in Wood
Unlike metal, wood is a relatively soft and yielding material. When a fully threaded screw is driven into wood, the threads engage along the entire length of the screw, creating friction and potentially stripping the wood fibers, especially in softwood applications.

A partially threaded wood screw mitigates this issue by employing its unthreaded shank to clamp the wood pieces together.

The threads engage only in the receiving piece of wood (the piece furthest from the screw head), while the smooth shank passes through the first piece. As the screw is tightened, the threads pull the receiving piece towards the first, and the shank bears against the first piece, generating significant clamping force.

The Pull-Down Effect
This "pull-down effect" is crucial in woodworking. It ensures a tight, secure joint by compressing the wood fibers and eliminating gaps between the joined pieces. A fully threaded screw, in contrast, would simply bind along its entire length, limiting the clamping pressure and increasing the risk of a weak or unstable joint.

Considerations and Limitations: The Full Threaded Alternative

While partially threaded screws offer distinct advantages in specific applications, it’s crucial to recognize that they are not universally superior. Situations exist where fully threaded screws are the preferred choice, and understanding these scenarios is paramount for optimal design and construction.

When Fully Threaded Screws Shine

Fully threaded screws are particularly well-suited for applications requiring fine adjustments or when working with softer, less dense materials.

Fine Adjustments: In scenarios where precise positioning and incremental adjustments are necessary, fully threaded screws provide a distinct advantage. The continuous thread engagement allows for minute changes in depth and tension, crucial for calibration or alignment procedures.

Softer Materials: When fastening materials like plastic or thin sheet metal, the increased thread engagement of a fully threaded screw can provide a more secure hold. The threads distribute the load more evenly across the material, reducing the risk of pull-through or deformation.

Imagine securing a thin plastic panel to a frame. A partially threaded screw might not provide sufficient grip, leading to instability. A fully threaded screw, however, maximizes contact and distributes the clamping force across a larger surface area.

Potential Drawbacks of Partially Threaded Screws

Despite their strengths, partially threaded screws are not without limitations. The primary drawback lies in their reduced holding power in certain applications.

If the combined thickness of the materials being joined is less than the length of the unthreaded shank, the screw will not be able to effectively clamp the materials together. The threads will not engage sufficiently, rendering the fastener ineffective.

Another potential issue arises when dealing with materials that require consistent thread engagement along the entire length of the fastener. In such cases, the smooth shank of a partially threaded screw becomes a liability rather than an asset.

Cost Considerations: Partially threaded screws, due to their more complex manufacturing process (requiring both threading and a smooth shank), can sometimes be more expensive than their fully threaded counterparts. While the performance benefits may justify the added cost in critical applications, budget constraints might dictate the use of fully threaded screws in less demanding scenarios.

Ultimately, the selection between partially and fully threaded screws hinges on a careful evaluation of the specific application requirements. Understanding the strengths and weaknesses of each type of fastener ensures optimal performance, reliability, and cost-effectiveness.

So, next time you spot a screw that’s only threaded part of the way, remember there’s likely a smart design reason behind it! Hopefully, this dive into why are some screws partially threaded has given you something to think about. Until next time, keep those bolts tight and your designs even tighter!
