Moen Cartridge Removal: The Only Guide You’ll Ever Need

Moen faucets are synonymous with quality and durability, gracing countless homes with their reliable performance. However, even the best-engineered faucets are subject to wear and tear over time. One of the most common issues homeowners face is a leaky faucet, which often points to a faulty cartridge.

The cartridge, a critical component within the faucet, regulates the flow and temperature of water. When it fails, it can lead to annoying drips, wasted water, and increased water bills.

Fortunately, replacing a Moen faucet cartridge is a manageable DIY project for many homeowners.

Why Replace a Moen Cartridge?

The faucet cartridge is the heart of your Moen faucet. It is responsible for mixing hot and cold water to deliver the desired temperature and flow. Over time, mineral deposits, corrosion, and general wear can compromise its functionality. Common signs that your cartridge needs replacement include:

• Persistent dripping: Even when the faucet is turned off completely.
• Reduced water flow: Despite adequate water pressure in other fixtures.
• Difficulty adjusting water temperature: Fluctuations or inability to get the desired temperature.
• Stiff or difficult-to-turn handle: Indicating internal damage or buildup within the cartridge.

Your Guide to Successful Cartridge Removal

This comprehensive guide is designed to empower you with the knowledge and confidence to safely and effectively remove and replace your Moen faucet cartridge.

We’ll walk you through each step of the process, from gathering the necessary tools to troubleshooting common challenges. Our goal is to equip you with the skills to restore your Moen faucet to its optimal performance and prevent future problems. Get ready to tackle this project like a pro!

Understanding Your Moen Faucet: Types and Cartridge Function

Before diving into the cartridge removal process, it’s crucial to understand the anatomy of your Moen faucet and how its various components work together. Knowing the type of faucet you have and the role of the cartridge will make the removal and replacement process significantly smoother.

Identifying Moen Faucet Types

Moen faucets primarily come in two main designs: single-handle and two-handle models.

Single-handle faucets, as the name suggests, feature a single lever that controls both water flow and temperature. Moving the handle left or right adjusts the temperature, while lifting it up or down controls the flow.

Two-handle faucets, on the other hand, have separate handles for hot and cold water, offering more precise temperature control but often requiring more space. Identifying your faucet type is the first step in understanding its internal workings.

Locating Key Components

Familiarizing yourself with the different parts of your faucet will simplify the cartridge removal.

The Faucet Handle

The faucet handle is the most visible part of the faucet and is used to control water flow and temperature. Its design and attachment method vary by model.

The Faucet Body

The faucet body is the main structure that houses the cartridge and other internal components. It’s usually made of metal and connected to the water supply lines.

The Faucet Cartridge: The Heart of the System

The faucet cartridge is the critical component responsible for regulating both the flow and temperature of the water. It’s essentially a valve that mixes hot and cold water to deliver the desired output.

Within the cartridge, internal mechanisms control the proportion of hot and cold water that flows through the faucet. Over time, these mechanisms can wear down or become clogged with mineral deposits, leading to leaks or inconsistent water temperature.

The Importance of the Valve

The valve is a general term referring to the mechanism that controls the flow of water. The cartridge itself acts as the valve in many Moen faucets. It sits within the faucet body and is connected to the hot and cold water supply lines. When you move the faucet handle, you’re directly manipulating the cartridge to open or close the valve and adjust the water flow and temperature. Understanding the relationship between the handle, cartridge, and valve is essential for successful cartridge replacement.

Gather Your Tools: What You’ll Need for the Job

With a foundational understanding of your Moen faucet’s workings, the next crucial step involves assembling the right tools and materials. Having these readily available will not only streamline the removal process but also minimize the risk of damage to your faucet or plumbing. Proper preparation is key to a successful cartridge replacement.

Essential Tools for Moen Cartridge Removal

These are the must-have items that will get you through the cartridge removal process.

Cartridge Puller Tool: The Key to Success

The cartridge puller tool is arguably the most important tool for this job. It’s specifically designed to grip and extract the cartridge without damaging the faucet body.

There are different types of pullers available. Some are simple T-handle designs, while others feature more elaborate mechanisms for added leverage. Choosing the right type for your faucet and comfort level is important.

Make sure that the cartridge puller tool you select is compatible with Moen faucets, as some generic pullers might not fit properly or provide sufficient grip.

Allen Wrench: For Handle Disassembly

Many Moen faucets, especially single-handle models, use an Allen screw (also known as a set screw) to secure the handle to the faucet body. You’ll need an Allen wrench of the correct size to loosen this screw and remove the handle.

It’s a good idea to have a set of Allen wrenches on hand, as the required size can vary depending on the faucet model. Refer to your faucet’s documentation or Moen’s website to determine the correct size for your specific model.

Pliers: For Gripping and Maneuvering

A pair of pliers can be useful for gripping small parts, maneuvering the cartridge puller, or gently twisting a stubborn cartridge. Use caution when using pliers directly on the cartridge or faucet body to avoid scratching or damaging the finish.

Consider using pliers with rubberized grips for better control and to minimize the risk of slippage.

New O-rings: Ensuring a Proper Seal

The O-rings on the cartridge provide a watertight seal within the faucet body. Over time, these O-rings can become brittle, cracked, or worn, leading to leaks.

It’s always a good idea to replace the O-rings when you replace the cartridge. This will help ensure a leak-free installation and prolong the life of your faucet.

Other Helpful Items

While the tools above are essential, these additional items can make the job easier and more efficient.

• Small screwdriver or awl: Useful for prying off decorative caps or accessing tight spaces.
• White vinegar or descaling solution: Can help dissolve mineral buildup and corrosion that may be preventing the cartridge from being removed.
• Clean cloths: Essential for wiping up spills, cleaning parts, and protecting surfaces.
• Flashlight: Provides better visibility, especially in dimly lit areas under the sink.

Step-by-Step Guide: Removing Your Moen Faucet Cartridge

With your tools assembled, it’s time to tackle the cartridge removal itself. Follow these steps carefully to ensure a smooth and successful process. Patience and attention to detail are your allies in this task.

Shut Off the Water Supply: The First Imperative

Before you even think about touching the faucet, shutting off the water supply is paramount. This prevents a potentially messy and damaging flood.

Locate the shut-off valves for both the hot water and cold water lines leading to the faucet. These are typically found directly under the sink, often behind a cabinet door. Turn both valves clockwise until they are completely closed.

Once you’ve closed the valves, open the faucet handle to relieve any remaining pressure in the lines. This simple step can prevent unexpected sprays and makes the subsequent steps easier.

Disassembling the Faucet: Gaining Access

Now that the water is off, you can begin disassembling the faucet to access the cartridge. This step requires a bit of finesse, as different Moen models have slightly different disassembly procedures.

Removing the Faucet Handle

The first step is always removing the faucet handle. Many single-handle Moen faucets use a small Allen screw (set screw) located underneath the handle, or sometimes concealed by a decorative cap. Use the appropriate Allen wrench to loosen this screw and gently lift the handle off the faucet body.

Two-handle faucets usually have handles that either screw off directly or are held in place by a small screw hidden beneath a decorative button or cap. Use a small screwdriver or knife to carefully pry off the cap (if present) and then unscrew the screw to release the handle.

Be gentle during this process to avoid scratching or damaging the faucet finish.

Identifying and Removing the Retaining Clip

Once the handle is removed, you’ll likely see a retaining clip (often shaped like a horseshoe or a C-clip) securing the cartridge in place. This clip prevents the cartridge from popping out under water pressure.

Use a pair of pliers or a small screwdriver to carefully remove the retaining clip. Make a note of its orientation for reassembly. Store it in a safe place, as it’s easy to lose.

Removing the Cartridge: The Core Task

With the retaining clip removed, you’re ready to extract the cartridge. This is where the cartridge puller tool comes into play.

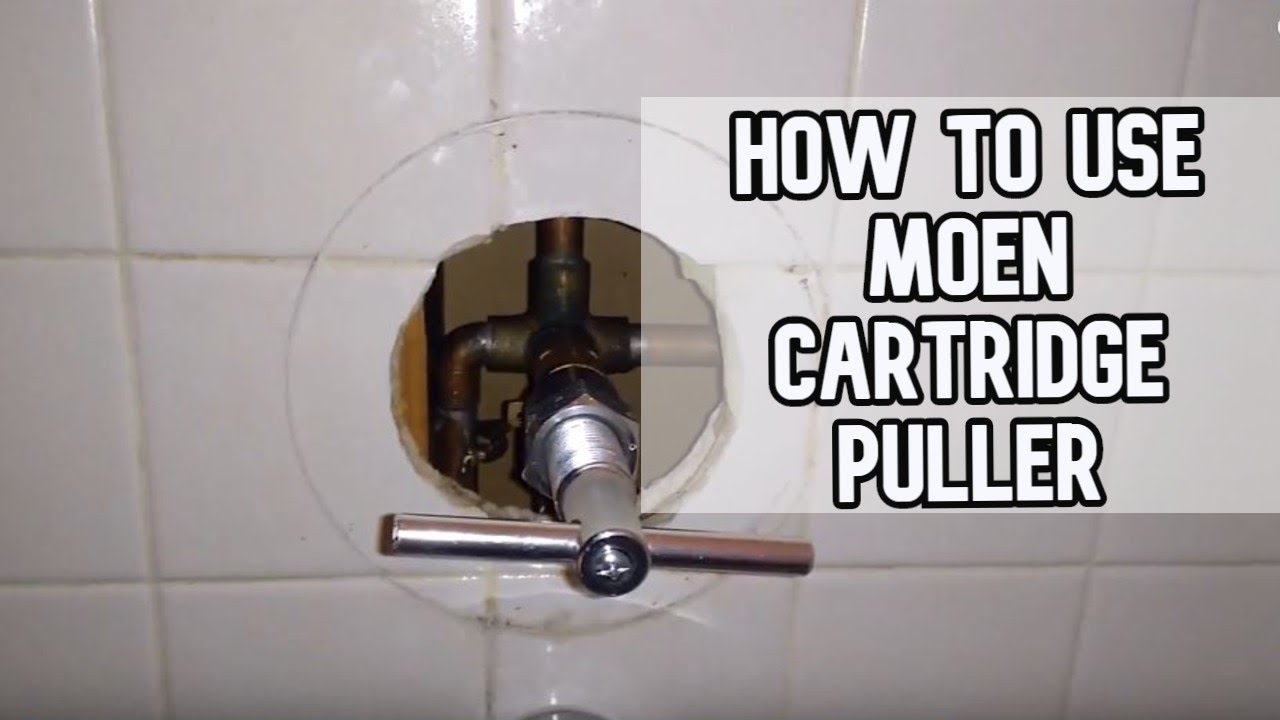

Using the Cartridge Puller Tool

Attach the cartridge puller tool to the exposed end of the cartridge, following the tool’s specific instructions. The tool should provide a secure grip on the cartridge.

Slowly and steadily apply pressure to the puller, using its mechanism to gently extract the cartridge. Avoid jerking or forcing the cartridge, as this could damage the faucet body.

Dealing with Stuck Cartridges

If the cartridge is stuck (a common issue, especially in older faucets), don’t panic. There are several techniques you can try.

First, try gently twisting the cartridge back and forth with pliers while simultaneously pulling with the cartridge puller. This can help break loose any mineral buildup or corrosion.

Addressing Corrosion and Mineral Buildup

Corrosion and mineral buildup are frequent culprits in stubborn cartridge removals. A soak in white vinegar or a commercial descaling solution can help dissolve these deposits.

Soak a cloth in vinegar and wrap it around the exposed cartridge end for several hours, or even overnight. You can also try carefully scraping away mineral deposits with a small screwdriver or awl, being careful not to damage the cartridge or valve seat.

Inspecting and Replacing the Cartridge: A Critical Step

Once the old cartridge is out, carefully inspect it for damage, such as cracks, breaks, or worn O-rings. This can provide clues about the cause of your faucet’s issues.

Cleaning the Valve Seat

Before installing the new cartridge, thoroughly clean the valve seat (the area where the cartridge sits inside the faucet body). Remove any remaining debris, mineral deposits, or corrosion.

Lubricating the O-Rings

The new cartridge will come with O-rings that ensure a proper seal. Before installation, lubricate these O-rings with silicone grease. This will help them slide into place smoothly and create a watertight seal.

Reassembling the Faucet: Putting It All Back Together

With the new cartridge in place, it’s time to reassemble the faucet.

Carefully insert the new cartridge into the faucet body, aligning it correctly according to the manufacturer’s instructions (if provided). Ensure it is fully seated.

Replace the retaining clip, making sure it’s securely locked in place. This is crucial for preventing the cartridge from dislodging under water pressure.

Reattach the faucet handle, tightening the Allen screw (if applicable) or securing it with the appropriate screws and caps.

Testing and Troubleshooting: The Final Check

After reassembly, slowly turn on the water supply valves under the sink.

Carefully check for leaks around the faucet base, handle, and spout. If you see any leaks, immediately turn off the water supply and re-examine the cartridge installation, O-rings, and connections.

Troubleshooting Common Issues

If you continue to experience leaks after reinstallation, the cartridge may not be fully seated, or the O-rings may be damaged. Double-check the installation and replace the O-rings if necessary.

If the water flow is restricted or the temperature is not correct, the cartridge may be installed backward. Remove the handle and cartridge, rotate the cartridge 180 degrees, and reinstall.

When Things Get Tough: Dealing with Difficult Cartridge Removals

Sometimes, even with the right tools and meticulous execution, a Moen cartridge simply refuses to budge. Years of mineral buildup, corrosion, or improper installation can render a cartridge stubbornly stuck. Before resorting to brute force (which could damage the faucet body), consider these strategies for tackling particularly difficult removals.

The Stem Extension Kit: A Mechanical Advantage

A stem extension kit is a specialized tool designed to provide extra leverage when extracting a stubborn cartridge. It typically consists of a series of interlocking pieces that attach to the cartridge stem, extending its length and providing a larger surface area for applying force.

Think of it as a breaker bar for your faucet.

Here’s how it works: The kit clamps onto the exposed portion of the cartridge stem. Then, using a wrench or pliers on the extension, you can apply significantly more torque without directly stressing the faucet body. This gradual, controlled force is often enough to break the cartridge free from years of accumulated gunk.

Stem extension kits are particularly useful when the cartridge puller tool alone isn’t providing sufficient grip or leverage. They are available at most hardware stores and are a worthwhile investment if you anticipate encountering stubborn cartridges regularly.

Beyond DIY: Recognizing When to Call a Professional

While persistence is admirable, there are situations where attempting to force a cartridge removal can lead to more harm than good. Knowing when to throw in the towel and call a professional plumber can save you time, money, and unnecessary frustration.

Severely Stuck or Damaged Cartridges

If you’ve tried the cartridge puller, a stem extension kit, and gentle persuasion, and the cartridge still won’t budge, it’s likely time to call for help. Excessive force can damage the faucet body, leading to costly repairs or even faucet replacement.

A cartridge that is visibly cracked, broken, or severely corroded also warrants professional attention. Attempting to remove a fragmented cartridge can be extremely difficult and may require specialized tools and techniques.

Preventing Further Damage

A skilled plumber has the experience and tools to extract even the most stubborn cartridges without damaging the faucet. They can also assess the overall condition of the faucet and identify any underlying issues that may have contributed to the cartridge failure.

Sometimes, the problem isn’t just the cartridge itself, but also issues related to the valve seat, or other internal components that need expert attention.

Moreover, attempting complex repairs yourself without the proper knowledge can void any warranty on the faucet. In the long run, paying for professional assistance may be more cost-effective than risking further damage or voiding your warranty.

Preventing Future Problems: Maintenance Tips for Moen Faucets

Once you’ve successfully navigated the often-tricky process of Moen cartridge replacement, the goal naturally shifts to preventing a repeat performance anytime soon. While cartridges are wear items, proper maintenance can significantly extend their lifespan and keep your faucets functioning smoothly. A few simple habits can save you time, money, and frustration in the long run.

The Power of Regular Cleaning

Mineral buildup is the nemesis of any faucet, and Moen faucets are no exception. Hard water, laden with calcium and magnesium, leaves deposits that accumulate around the cartridge, valve, and handle, eventually leading to stiffness, leaks, and premature cartridge failure.

Regular cleaning is the first line of defense.

Make it a habit to wipe down your faucets with a soft, damp cloth after each use. This simple step removes water spots and prevents mineral deposits from gaining a foothold.

For a deeper clean, especially in areas with hard water, consider using a solution of equal parts white vinegar and water. Apply the solution to a cloth, wipe down the faucet, and let it sit for a few minutes before rinsing thoroughly.

Avoid abrasive cleaners, as they can scratch the finish and damage the protective coatings on your Moen faucet.

Gentle Operation: A Key to Longevity

The way you operate your faucet handle can also impact the lifespan of the cartridge. Excessive force, such as slamming the handle open or closed, puts undue stress on the cartridge and its internal components.

Treat your faucet with a gentle touch. Avoid yanking or forcing the handle. Smooth, deliberate movements will not only prolong the life of the cartridge but also prevent damage to other parts of the faucet mechanism.

Teach all members of your household to operate the faucet with care. This small change in habit can make a big difference in preventing premature wear and tear.

Proactive O-Ring Replacement

O-rings are small, rubber seals that play a critical role in preventing leaks around the cartridge. Over time, these O-rings can dry out, crack, or become brittle, leading to drips and reduced water pressure.

Instead of waiting for a leak to appear, consider proactively replacing the O-rings on your Moen faucet every few years. This is a relatively inexpensive and straightforward task that can prevent more serious problems down the road.

When replacing the O-rings, be sure to use silicone grease to lubricate them before installation.

This will help them slide into place easily and create a tight, watertight seal.

Silicone grease is also safe for use with rubber and plastic components, unlike petroleum-based lubricants, which can cause them to degrade over time.

By incorporating these maintenance tips into your routine, you can keep your Moen faucets functioning flawlessly for years to come, minimizing the need for frequent cartridge replacements and ensuring a smooth, consistent water flow.

So there you have it! Hopefully, you’re now a pro at moen cartridge removal. Go forth, fix those leaky faucets, and maybe even save a little money. You’ve got this!
