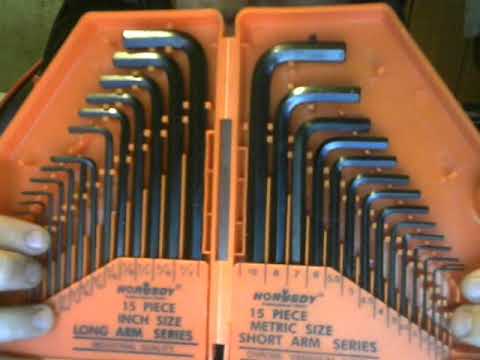

Image taken from the YouTube channel PerformanceFreak , from the video titled HORUSDY 30-Piece Hex Key Set, Allen Wrench Set Inch/Metric MM(0.7mm-10mm) SAE(0.028″-3/8) MY REVIEW .
Hex Key Sizes Explained: Find the Perfect Fit!
Choosing the right hex key (also known as an Allen wrench) for a fastener can be surprisingly tricky. This guide will walk you through the world of "standard hex key sizes," ensuring you select the appropriate tool for the job and avoid damaging your screws.
Understanding the Basics of Hex Keys
Before diving into sizes, let’s clarify what a hex key is and why getting the right size is crucial.
- What is a Hex Key? A hex key is a simple tool used to drive bolts and screws that have a hexagonal socket in the head (an internal hexagon recess).
- Why Size Matters: Using the wrong size hex key can lead to stripping the screw head, making it incredibly difficult, or even impossible, to remove the fastener. It can also damage the hex key itself. Always double-check the size before applying force.
Decoding Standard Hex Key Sizes
The phrase "standard hex key sizes" refers primarily to two measurement systems: Imperial (inch-based) and Metric. Understanding the difference is vital.
Imperial (SAE) Hex Key Sizes
Imperial hex keys are measured in inches. Common sizes are expressed as fractions of an inch.
- How to Identify: Imperial hex keys will usually have their size marked as a fraction, such as 1/16", 1/8", 1/4", and so on.
- Common Sizes: While there are many imperial hex key sizes, some of the most frequently encountered include:
- 1/16 inch
- 5/64 inch
- 3/32 inch
- 1/8 inch
- 5/32 inch
- 3/16 inch
- 7/32 inch
- 1/4 inch
- 5/16 inch
- 3/8 inch
- Finding the Right Fit: If you’re unsure of the size, start with a smaller key and gradually increase the size until you find one that fits snugly without any wobble.
Metric Hex Key Sizes
Metric hex keys are measured in millimeters (mm).
- How to Identify: Metric hex keys will typically have their size marked as a millimeter measurement, such as 2mm, 3mm, 5mm, and so on.
- Common Sizes: Some common metric hex key sizes you might encounter are:
- 1.5 mm
- 2 mm
- 2.5 mm
- 3 mm
- 4 mm
- 5 mm
- 6 mm
- 8 mm
- 10 mm
- Finding the Right Fit: As with imperial keys, begin with a smaller metric key and gradually increase the size until you achieve a secure, wobble-free fit.
Size Charts and Conversion
It’s important to note that there are slight differences between imperial and metric sizes, and attempting to use the wrong system can lead to damage.
Imperial to Metric Conversion (Approximation)
It’s better to use the correct type of hex key, but here’s a rough conversion guide if you must approximate:
| Imperial (inches) | Metric (mm) (Approximate) |
|---|---|
| 1/16" | 1.5 mm |
| 5/64" | 2 mm |
| 3/32" | 2.5 mm |
| 1/8" | 3 mm |
| 5/32" | 4 mm |
| 3/16" | 5 mm |
| 1/4" | 6 mm |
| 5/16" | 8 mm |
| 3/8" | 10 mm |
Remember, these are approximations. Using the correct system is always the best practice.
Identifying Unknown Hex Key Sizes
Sometimes, you might encounter a situation where the size isn’t marked on the hex key. Here’s how you can identify the correct size:
- Test Fitting: Start with a set of hex keys and test each size until you find one that fits snugly.
- Hex Key Gauge: A hex key gauge is a tool designed to quickly determine the size of a hex key.
- Calipers: Use digital calipers to measure the distance across the flats of the hex key. Then, compare your measurement to a size chart.
Types of Hex Keys
Besides the common L-shaped hex keys, several variations exist:
- L-Shaped: The most common type, providing leverage due to its long arm.
- T-Handle: Offers greater torque and control.
- Ball-End: Allows for angled entry into the fastener, useful in tight spaces, but reduces maximum torque.
- Folding Sets: A convenient all-in-one option for portability.
Each type of hex key is available in both Imperial and Metric "standard hex key sizes." Select the right type of hex key for the job and the environment.
Hex Key Sizes Explained: FAQs
Have questions about hex key sizes? Here are some common ones to help you find the perfect fit.
What are the most common units used for hex key sizes?
Hex keys primarily use two measurement systems: metric and imperial (also known as standard). Metric sizes are expressed in millimeters (mm), while imperial sizes are expressed in inches. Knowing which system your fastener uses is crucial for finding the correct hex key.
Are all hex key sizes created equal in terms of strength?
No, larger hex key sizes generally offer greater torque capacity. Using too small of a hex key for a high-torque application can result in the key or the fastener being damaged. Always choose a hex key appropriate for the force needed.
How do I identify the correct hex key size if I’m unsure?
A good starting point is to try a range of hex keys within the same measurement system (metric or imperial). You want a snug fit without forcing it. If you’re dealing with unknown sizes, consider purchasing a set containing a variety of standard hex key sizes.
Where can I find a chart of common hex key sizes and their corresponding dimensions?
Many online resources provide charts listing standard hex key sizes in both metric and imperial units. Hardware stores and tool manufacturers often have these charts available as well, either printed or online, to help you find the right fit.
So, next time you’re reaching for a hex key, remember this guide! Hopefully, you’ll now find it a little easier to choose the right tool. Get out there and tackle those projects with the confidence that comes from understanding standard hex key sizes. Happy wrenching!
