DIY Install: Dishwasher High Loop Bracket (Easy Guide)

The unsung hero of dishwasher sanitation is the high loop. This simple yet ingenious plumbing technique prevents dirty water from backing up into your dishwasher, safeguarding your clean dishes from contamination.

But a high loop is only effective if it stays high. That’s where the high loop bracket comes in.

This small, inexpensive device provides crucial support, ensuring the drain hose maintains its elevated position for optimal backflow prevention.

The Role of the High Loop

Imagine the potential consequences without a high loop: wastewater from your sink or garbage disposal could flow back into your dishwasher.

Not a pretty picture, right? The high loop cleverly uses gravity to prevent this from happening. By elevating the drain hose as high as possible under the sink, you create a natural barrier against backflow.

Why Use a Bracket?

Without a bracket, the drain hose is prone to sagging or even falling down completely. This negates the benefits of the high loop.

A bracket offers a secure and stable anchor point, keeping the hose in the correct position. Think of it as a seatbelt for your drain hose.

The DIY Advantage: Cost Savings and Convenience

Installing a high loop bracket is a surprisingly simple DIY project. It requires minimal tools and typically takes less than 30 minutes to complete.

By tackling this task yourself, you’ll save money on professional plumbing fees and gain the satisfaction of a job well done. Plus, you can address the issue on your schedule, without waiting for an appointment.

Prioritizing Safety

While the installation process is straightforward, safety should always be your top priority.

Before you begin, always turn off the power to the dishwasher at the circuit breaker and shut off the water supply to the dishwasher. This simple precaution can prevent electrical shock or accidental flooding.

By following these essential safety measures, you can confidently install your high loop bracket and enjoy a cleaner, safer kitchen.

Understanding the Dishwasher High Loop: Preventing Backflow

The unsung hero of dishwasher sanitation is the high loop. This simple yet ingenious plumbing technique prevents dirty water from backing up into your dishwasher, safeguarding your clean dishes from contamination. But a high loop is only effective if it stays high. That’s where the high loop bracket comes in. This small, inexpensive device provides crucial support, ensuring the drain hose maintains its elevated position for optimal backflow prevention.

What is a High Loop?

At its core, a high loop is an elevated section of the dishwasher’s drain hose.

It’s deliberately positioned higher than the point where the drain hose connects to the sink drain or garbage disposal. This creates a crucial vertical rise in the hose.

This simple elevation is the key to preventing backflow.

The Gravity Barrier: How Backflow is Prevented

The magic of the high loop lies in harnessing the power of gravity.

By raising the drain hose, you create a point that wastewater must overcome to flow back into the dishwasher.

If wastewater in the sink drain or garbage disposal attempts to flow backward, it will encounter this elevated section.

Gravity pulls the water down, preventing it from reaching the dishwasher.

Think of it as a miniature dam that protects your appliance from contamination.

The Drain Hose: The Conduit of Protection

The dishwasher drain hose itself is a critical component of this system.

It’s the physical pathway through which wastewater is expelled from the dishwasher.

It’s also the conduit through which backflow could occur if the high loop wasn’t in place.

The hose must be flexible enough to allow for the high loop formation but also durable enough to withstand the constant flow of hot, soapy water.

A compromised or damaged drain hose can undermine the effectiveness of the entire system.

Basic Plumbing Concepts: Understanding Dishwasher Drainage

To fully appreciate the high loop, it’s helpful to understand some basic plumbing concepts.

Dishwashers typically drain into either the sink drainpipe or the garbage disposal.

Both of these connections can be potential sources of backflow.

The drain hose utilizes gravity as its main mechanism.

It is also important to understand the importance of proper venting in plumbing systems.

Venting helps to maintain proper water flow and prevent siphoning effects that could compromise the high loop.

High Loop Bracket vs. Air Gap: Which is Right for You?

While the high loop effectively leverages gravity to prevent backflow, it’s not the only method available. The air gap is another common and code-compliant solution. Understanding the differences between these two approaches is essential for choosing the best option for your situation.

Air Gap: A Direct Physical Break

An air gap creates a physical break in the drain line. This break prevents wastewater from siphoning back into the dishwasher under any circumstances. Typically, it’s a small, chrome-plated fixture mounted on the sink or countertop.

The dishwasher drain hose connects to the air gap, which then drains into the sink drain or garbage disposal.

This design ensures that any backflow would simply spill out of the air gap, rather than contaminate the dishwasher.

High Loop vs. Air Gap: Key Differences

The primary difference lies in how backflow is prevented. A high loop relies on gravity and maintaining a specific hose position. An air gap provides a guaranteed physical barrier.

Here’s a brief breakdown:

• High Loop: Utilizes gravity, requires proper installation and support.
• Air Gap: Creates a physical break, offers more robust protection against backflow.

Advantages and Disadvantages

Each method has its pros and cons:

High Loop Advantages:

• Less visible and intrusive compared to an air gap.
• Generally easier to install, especially in existing kitchens.
• More aesthetically pleasing for some homeowners.

High Loop Disadvantages:

• Relies on consistent hose positioning. If the loop falls, protection is compromised.
• May not be permitted by local codes in all areas.
• Can still allow some minor back-siphonage in certain extreme situations.

Air Gap Advantages:

• Provides a foolproof physical barrier against backflow.
• Meets plumbing codes in many jurisdictions.
• Offers added peace of mind regarding water contamination.

Air Gap Disadvantages:

• Can be considered unsightly by some homeowners due to its countertop presence.
• Requires cutting a hole in the sink or countertop for installation.
• Potential for clogging if not cleaned regularly.

Building Code Considerations

Local building codes often dictate which backflow prevention method is required. Always check your local plumbing codes before installing a dishwasher. Some jurisdictions mandate an air gap, while others allow a high loop as long as it meets specific height and installation requirements. Failure to comply with local codes can result in fines or require re-installation.

When is a High Loop Bracket Ideal?

A high loop bracket becomes particularly beneficial when:

• Your local code permits a high loop.
• You prefer a less visible solution.
• You are retrofitting a dishwasher into an existing kitchen and wish to avoid cutting holes in the countertop.
• You want a simpler installation process.

Securing the Hose to the Cabinet: An Alternative Approach

Instead of a dedicated bracket, another option is to secure the drain hose directly to the underside of the countertop or the inside of the cabinet using clips or zip ties. This can be a viable solution, as long as the hose is securely fastened and maintains the necessary high loop position. Regularly inspect these makeshift securing methods to ensure they haven’t come loose. Ultimately, a purpose-built high loop bracket offers a more robust and reliable solution, ensuring consistent performance and peace of mind.

While understanding the nuances between air gaps and high loops is essential for compliance and optimal drainage, preparing for the installation itself is equally critical. A successful high loop bracket installation hinges on having the right tools and materials readily available.

Gathering Your Tools and Materials for a Smooth Installation

Proper preparation ensures a smoother, safer, and more efficient installation process. Rushing to the hardware store mid-project can lead to frustration and delays. Let’s break down exactly what you’ll need.

Essential Tools for the Job

Having the right tools not only simplifies the installation but also prevents damage to your dishwasher, cabinetry, or yourself.

• Screwdrivers (Various Types/Sizes): A Phillips head screwdriver is generally necessary, but a flathead screwdriver may also be required depending on the type of screws used for the bracket and your cabinet material. Consider having a few different sizes on hand to accommodate various screw heads. A magnetic screwdriver is especially helpful, preventing screws from dropping into hard-to-reach places.

• Pliers: Pliers are useful for gripping, bending, or manipulating the drain hose and hose clamps. Needle-nose pliers can be particularly helpful in tight spaces.

• Level (Optional): While not strictly essential, a small level can help ensure the bracket is mounted straight, contributing to a professional-looking and properly functioning high loop.

• Tape Measure: Essential for accurately determining the optimal height for your high loop and bracket placement. Measure twice, cut once!

• Pencil or Marker: For marking the screw locations on the cabinet interior.

• Drill (Optional): Depending on the cabinet material, you might need a drill to create pilot holes for the screws. This is particularly important for hardwood cabinets to prevent splitting.

Selecting the Right Bracket Type

Choosing the appropriate bracket is crucial for a secure and effective high loop. There are two main types: universal and model-specific.

• Universal Brackets: These are designed to work with most dishwashers and drain hoses. They offer flexibility but may require some adjustments during installation.

• Model-Specific Brackets: These are designed for specific dishwasher models and offer a more precise fit. Check your dishwasher’s documentation or the manufacturer’s website to see if a model-specific bracket is available.

When selecting a bracket, consider its material. Plastic brackets are generally less expensive, but metal brackets offer greater durability and longevity. Also, check the bracket’s dimensions to ensure it can accommodate the diameter of your dishwasher’s drain hose.

Fasteners: Screws and Clamps

The right fasteners are essential for securely attaching the bracket to the cabinet and the drain hose to the bracket.

• Screws: The screws should be appropriate for the cabinet material. Wood screws are suitable for wooden cabinets, while sheet metal screws may be necessary for metal cabinets. Ensure the screws are the correct length; too short, and they won’t hold securely, too long, and they could protrude through the cabinet.

• Clamps: Hose clamps are crucial for securing the drain hose to the bracket and preventing leaks. Stainless steel clamps are recommended for their durability and resistance to corrosion. Ensure the clamps are the correct size for your drain hose. Worm-gear clamps are a popular and reliable option.

By taking the time to gather these tools and materials beforehand, you’ll set yourself up for a successful and stress-free high loop bracket installation.

Step-by-Step Guide: Installing Your Dishwasher High Loop Bracket

With the right tools and materials assembled, you’re now ready to install your dishwasher high loop bracket. This section provides a detailed, numbered guide to ensure a successful installation. Remember to read each step carefully before proceeding.

Safety First: Disconnect Power and Water

Before you begin any work on your dishwasher, safety is paramount. Locate the circuit breaker that controls the dishwasher’s power supply and switch it off.

Next, turn off the water supply to the dishwasher. This is typically located under the sink.

Place a towel or small bucket beneath the connections, to catch any residual water that may leak out during the installation process.

Locate the Drain Hose: Trace its Connection

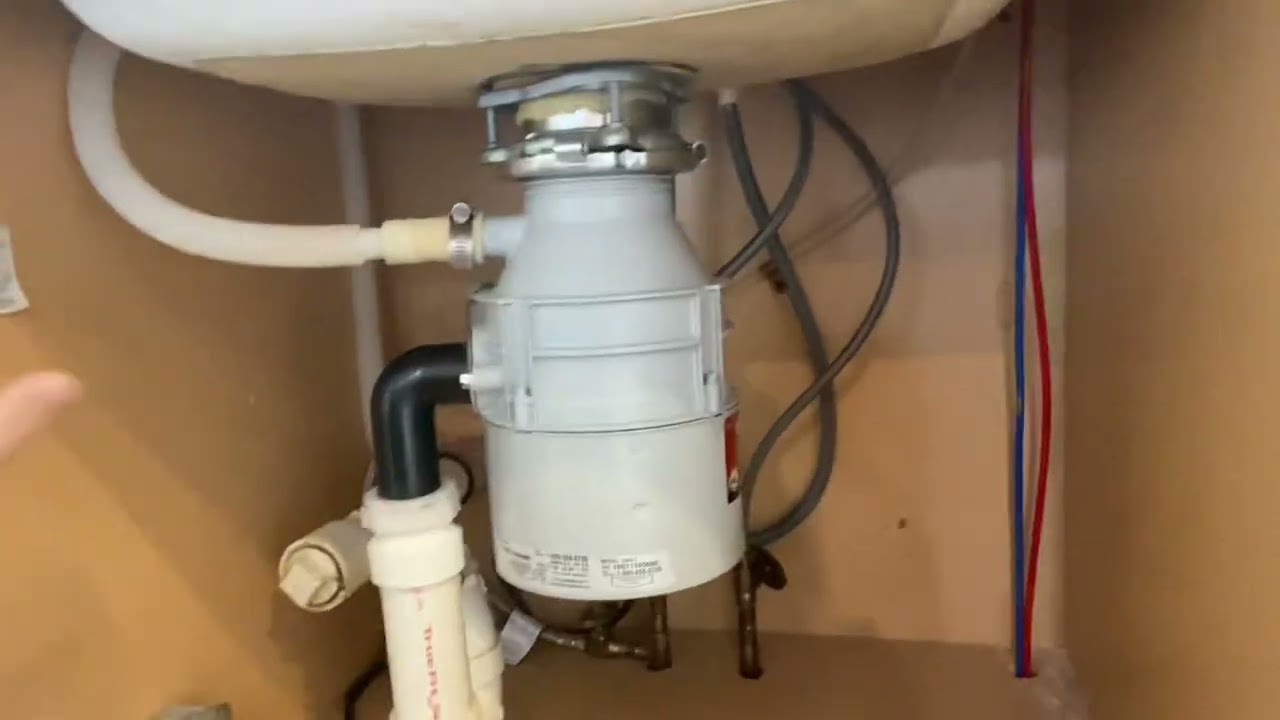

The dishwasher drain hose runs from the dishwasher to either the sink’s drainpipe or a garbage disposal unit.

Carefully trace the drain hose from the dishwasher to its termination point. Understanding its path will help you determine the best location for the high loop bracket.

Position the High Loop: Maximize Height

The effectiveness of a high loop depends on its height. The higher the loop, the better it will prevent backflow.

Ideally, the top of the loop should be as high as possible under the sink cabinet, preferably close to the countertop level.

Hold the drain hose in a looped position to visualize where the bracket will need to be mounted to maintain this height.

Attaching the Bracket: A Secure Foundation

Selecting a Mounting Location

Choose a location inside the cabinet where the bracket can be securely attached. Ensure that there is sufficient space and clearance for the bracket and the drain hose. Avoid areas where the bracket could interfere with other plumbing or wiring.

Bracket Installation

Hold the bracket in the desired position, ensuring the high loop maintains its maximum height.

Using a pencil or marker, mark the screw locations on the cabinet interior through the bracket’s mounting holes.

If necessary, pre-drill small pilot holes to prevent the cabinet material from splitting when you insert the screws. This is particularly important for solid wood cabinets.

Secure the bracket to the cabinet using the provided screws. Ensure the bracket is firmly attached and doesn’t wobble.

Securing the Drain Hose: Ensuring Stability

Once the bracket is securely mounted, carefully position the drain hose within the bracket’s retaining clips or straps.

Ensure the hose is snug and securely held in place.

If necessary, use additional hose clamps to further secure the drain hose to the bracket, preventing it from slipping or sagging over time.

Checking for Leaks: A Critical Inspection

After securing the drain hose to the bracket, it’s crucial to check for leaks.

Carefully turn the water supply back on slowly, and inspect all connections for any signs of water leakage.

Pay close attention to the points where the drain hose connects to the dishwasher, the sink drainpipe, or the garbage disposal.

If you notice any leaks, immediately turn off the water supply and tighten the connections or replace any damaged components.

Test the Dishwasher: Verifying Functionality

Once you’ve confirmed there are no leaks, restore power to the dishwasher by switching the circuit breaker back on.

Run a short dishwasher cycle to ensure it drains properly and there are no issues with the high loop.

Listen for any unusual noises or signs of malfunction during the cycle.

Building Codes: Ensuring Compliance

While a high loop is a common practice, local plumbing codes may vary.

Consult your local building department or a qualified plumber to ensure your high loop installation meets all applicable regulations.

This step is especially important if you’re unsure about specific requirements in your area or if you’re making significant plumbing modifications.

Troubleshooting Common High Loop Issues

Even with careful installation, issues can sometimes arise after installing a high loop bracket. Addressing these problems promptly ensures your dishwasher operates efficiently and prevents potential water damage. Here are some common issues and practical solutions.

High Loop Isn’t Staying Put

One of the most frequent complaints is the high loop gradually sagging or completely falling down. This defeats its purpose and can lead to backflow.

• Bracket Failure: Check the bracket itself. Is it securely attached to the cabinet? Are the screws or adhesive failing? If so, replace the screws with longer ones or use a stronger adhesive, ensuring the cabinet material is appropriate for the chosen fastener.

• Inadequate Support: The bracket may be properly installed, but the drain hose might be too heavy or the bracket design insufficient for supporting its weight. Consider using multiple brackets spaced along the hose to distribute the load.

• Hose Material: Some hoses are more rigid than others. A more flexible hose might be easier to position and maintain within the high loop.

Leaks Around the Drain Hose Connection

Leaks signal a problem that needs immediate attention to prevent water damage to your cabinetry and flooring.

• Loose Clamps: Ensure all clamps connecting the drain hose to the dishwasher, sink drain, or garbage disposal are tightened securely. Use a screwdriver or pliers to tighten the clamps, but avoid over-tightening, which can damage the hose.

• Damaged Hose: Inspect the drain hose for any cracks, splits, or signs of wear, especially near the connections. Even a small imperfection can cause a leak under pressure. Replace the drain hose immediately if any damage is detected.

• Incorrect Hose Size: Verify that the drain hose is the correct diameter for the fittings it’s connected to. A mismatch can create a weak seal.

• Connection Points: Check the physical connection between the drain hose and the garbage disposal or the sink drain. This could involve tightening the hose clamp or even resealing the connection with Teflon tape.

Dishwasher Not Draining Properly

A dishwasher that isn’t draining correctly can leave behind dirty water and food particles, indicating a blockage or other issue with the drainage system.

• Clogged Drain Hose: Disconnect the drain hose and check for any obstructions. Use a long, flexible brush or a plumber’s snake to clear any clogs. Before reconnecting, flush the hose with water to ensure it’s clear.

• Filter Issues: A clogged dishwasher filter can restrict water flow and affect drainage. Remove and clean the filter regularly, following the manufacturer’s instructions.

• Kinked or Collapsed Hose: Inspect the drain hose for any kinks or collapses that could restrict water flow. Straighten any kinks or replace the hose if it’s collapsed. Ensure the high loop itself isn’t creating an overly sharp bend that hinders drainage.

• Air Lock: Sometimes, an air lock can form in the drain hose, preventing proper drainage. Try running the dishwasher with a small amount of baking soda and vinegar to help clear any airlocks or minor blockages.

• Garbage Disposal Blockage: If the dishwasher drains into a garbage disposal, make sure the disposal is clear of any obstructions. Run the disposal briefly to ensure it’s functioning properly.

• Drain Valve Malfunction: Although less common, the dishwasher’s drain valve might be malfunctioning. This may require professional repair or replacement of the valve.

So, there you have it! Installing a dishwasher high loop bracket really is a breeze. Hopefully, this guide made the process super simple. Go get that dishwasher high loop bracket installed and enjoy clean dishes with peace of mind!
