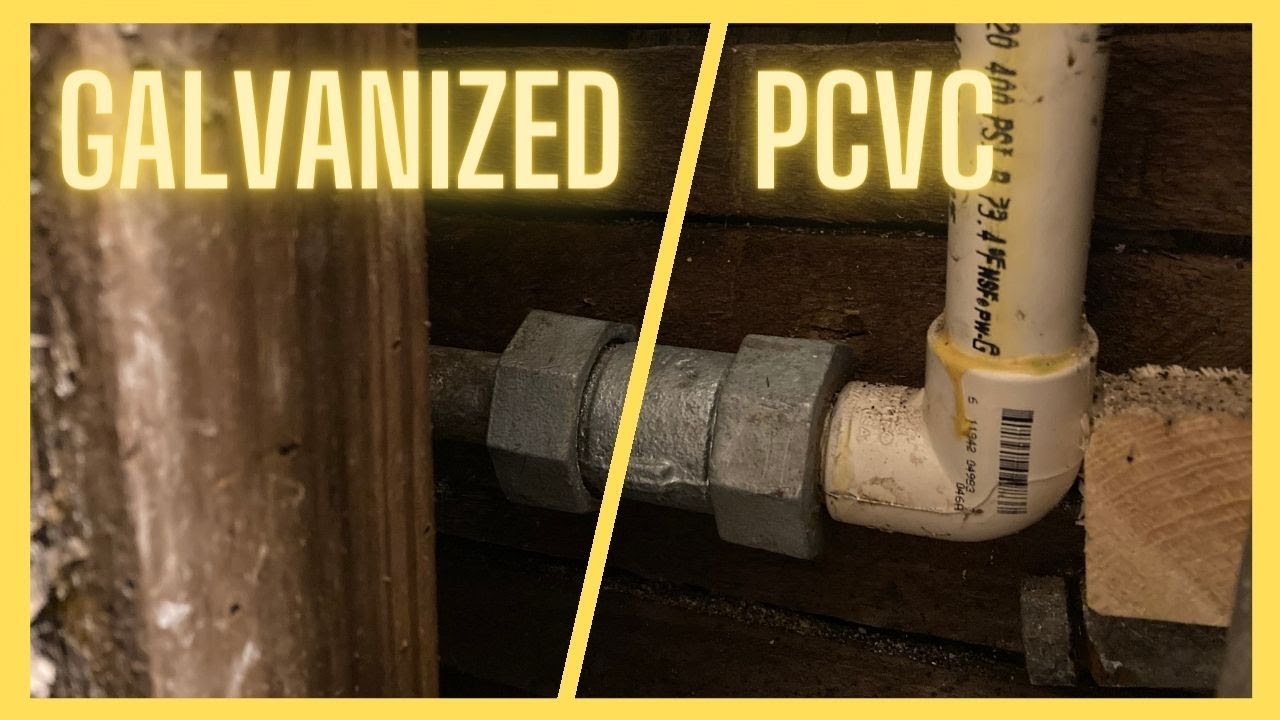

Connect Galvanized Pipe to PVC: The ULTIMATE Guide!

Bridging the Gap Between Galvanized and PVC

Connecting different types of piping is a common task in plumbing repairs and home improvement projects. One frequent scenario involves joining galvanized steel pipe to PVC (Polyvinyl Chloride) pipe. This need often arises when upgrading older plumbing systems or making repairs to existing ones.

The Challenge of Dissimilar Materials

While connecting galvanized pipe to PVC is straightforward when both pipes are threaded, a unique challenge presents itself when dealing with non-threaded galvanized pipe. Traditional threaded connections are impossible in this case, requiring alternative methods to create a secure and watertight seal. This article focuses specifically on connecting non-threaded galvanized pipe to PVC.

Why This Matters

Understanding how to properly connect these dissimilar materials is crucial for several reasons.

A faulty connection can lead to leaks, water damage, and potentially costly repairs. Improperly joined pipes can also compromise the integrity of the plumbing system, leading to further issues down the line.

Article Goal

This article serves as a comprehensive guide to connecting non-threaded galvanized pipe to PVC. We will provide a step-by-step approach to ensure a safe, effective, and long-lasting connection. Our goal is to empower you with the knowledge and skills to tackle this common plumbing task with confidence. We aim to discuss methods, tools, safety, and troubleshooting.

Understanding Your Materials: Galvanized Pipe vs. PVC

Before diving into the connection methods, it’s crucial to understand the characteristics of the materials you’ll be working with: galvanized pipe and PVC. Knowing their properties, common applications, advantages, and disadvantages will illuminate why you might be connecting them in the first place, and inform your choice of connection method.

Galvanized Pipe: A Durable Legacy

Galvanized pipe is steel pipe that has been coated with a layer of zinc to protect it from corrosion. This zinc coating acts as a barrier, preventing rust and extending the lifespan of the pipe, particularly when exposed to water.

Its primary use historically has been for water supply lines, and sometimes, though less commonly, for drain lines. You’ll often find it in older homes built before the widespread adoption of copper and plastics like PVC.

Why Galvanized Pipe in Older Homes?

Galvanized pipe was a popular choice for plumbing in the early to mid-20th century due to its strength and resistance to corrosion compared to uncoated steel. However, over time, the zinc coating can degrade, and the pipe can become susceptible to corrosion and mineral buildup, reducing water flow and potentially contaminating the water supply.

This degradation is why homeowners often choose to replace sections of galvanized pipe with newer materials like PVC, leading to the need for connecting the two.

PVC (Polyvinyl Chloride): The Modern Alternative

PVC, or Polyvinyl Chloride, is a thermoplastic polymer widely used in various applications, including plumbing. In residential plumbing, it’s commonly used for drain, waste, and vent (DWV) systems, as well as for irrigation and some cold-water supply lines (check local codes for potable water applications).

Advantages of PVC

PVC offers several advantages over galvanized steel, contributing to its widespread use in modern plumbing:

• Cost-Effectiveness: PVC is significantly cheaper than galvanized steel, making it an attractive option for new installations and replacements.

• Ease of Installation: PVC is lightweight and easy to cut and join using PVC cement, simplifying the installation process. No threading is required for many PVC connections.

• Corrosion Resistance: PVC is highly resistant to corrosion, unlike galvanized steel, ensuring a longer lifespan and preventing rust-related water contamination.

• Flow Efficiency: PVC’s smooth interior surface allows for better water flow compared to the rougher interior of aged galvanized pipe, which can accumulate mineral deposits.

The combination of these advantages makes PVC a common replacement material for sections of aging galvanized pipe, explaining why connecting the two is a frequent plumbing task.

Method 1: The Flexible Solution – Rubber Sleeve Couplings

One of the simplest and most forgiving methods for joining galvanized pipe to PVC, particularly non-threaded galvanized, involves using rubber sleeve couplings. These couplings, often referred to by the brand name Fernco, offer a flexible, watertight seal that can accommodate slight misalignments or variations in pipe diameter.

This makes them an excellent choice for DIYers or when dealing with older plumbing systems where perfect alignment is difficult to achieve.

Step-by-Step Installation Guide

The following steps outline the proper procedure for using rubber sleeve couplings to connect galvanized and PVC pipes:

1. Accurate Measurement is Key: Begin by using your measuring tape to determine the exact length of pipe needed to bridge the gap between the existing galvanized pipe and the PVC. Precise measurements are crucial for a secure and leak-free connection.
2. Cutting the Pipes: Employ a pipe cutter specifically designed for the material you are cutting. Use the appropriate pipe cutter for galvanized pipe or PVC pipe. Ensure clean, square cuts on both the galvanized and PVC pipes. This provides a flat surface for the coupling to grip.
3. Deburring the Cut Edges: This step is critical. Use a deburring tool to smooth the inside and outside edges of both pipes after cutting. Remove any burrs or sharp edges. This prevents damage to the rubber sleeve during installation and ensures a proper seal.
4. Sliding on the Couplings: Loosen the mechanical clamps on the rubber sleeve coupling. Slide the coupling onto one of the pipes, positioning it far enough back to allow access for the other pipe. Align the second pipe and slide the coupling over the joint, ensuring it covers both pipes equally.
5. Tightening the Clamps: Using a screwdriver or wrench (depending on the clamp type), gradually tighten the mechanical clamps on the rubber sleeve. Alternate between the clamps, tightening them in small increments to ensure even pressure.
6. Achieving a Secure, Watertight Seal: Continue tightening until the rubber sleeve is firmly compressed against both pipes, creating a secure and watertight seal. Avoid over-tightening, as this can damage the coupling or the pipes themselves.

Advantages of Rubber Sleeve Couplings

• Ease of Installation: This method requires minimal specialized tools and can be completed relatively quickly, even by those with limited plumbing experience.
• Accommodating Misalignment: Rubber sleeve couplings offer flexibility, making them ideal for situations where the pipes are not perfectly aligned. They can absorb minor vibrations and movements, reducing the risk of leaks.

Disadvantages of Rubber Sleeve Couplings

• Potential for Leaks: While generally reliable, rubber sleeve couplings can leak if not properly installed or if the clamps are not sufficiently tightened. Regular inspection is recommended.
• Aesthetic Considerations: Rubber sleeve couplings are visible and may not be aesthetically pleasing in exposed plumbing runs. Consider this if appearance is a primary concern. They are typically black and have a more industrial look.

Method 2: Transitioning with Adapters

While rubber sleeve couplings offer flexibility, sometimes a more rigid and permanent connection is desired when joining galvanized and PVC pipes. This is where transition adapters come in.

These fittings bridge the gap between the two materials, providing a secure and durable joint. However, this method generally demands more precision and attention to detail during installation.

Choosing the Right Adapter

The crucial first step is selecting the appropriate adapter for your specific application. The primary distinction lies between threaded and solvent weld adapters.

Threaded adapters, as the name suggests, feature threads on one end (typically for the galvanized pipe) and a socket for solvent welding PVC on the other.

Solvent weld adapters, on the other hand, may utilize compression fittings for the galvanized pipe or other mechanical gripping methods, but still rely on PVC cement for the PVC side.

The best choice depends on the condition of your galvanized pipe and your comfort level with threading.

Step-by-Step Installation

Preparing the Pipes

As with any plumbing project, preparation is key. Start by carefully measuring the required length of both the galvanized and PVC pipes.

Use a pipe cutter designed for each respective material to ensure a clean, square cut. A clean cut is critical for the adapter to properly seat against the pipe.

Once the pipes are cut, use a deburring tool to smooth both the inner and outer edges. Removing any burrs or sharp edges prevents damage to the adapter and ensures a proper seal.

Understanding Adapter Connections

Before proceeding, familiarize yourself with the specific type of adapter you are using.

Threaded adapters will require careful application of pipe thread sealant or Teflon tape on the galvanized pipe threads to ensure a watertight seal.

Solvent weld adapters rely on the chemical bonding of PVC cement to create a fused joint.

Applying PVC Cement

When working with PVC cement, ventilation is crucial. Always work in a well-ventilated area or wear a respirator to avoid inhaling harmful fumes.

Apply PVC primer to the outside of the PVC pipe and the inside of the adapter socket. Let the primer dry for the recommended time, as indicated on the can.

Next, apply PVC cement to both surfaces, again following the manufacturer’s instructions. Quickly insert the PVC pipe into the adapter socket and give it a slight twist to ensure even distribution of the cement.

Hold the connection firmly for the recommended time to allow the cement to set.

Connecting to the Galvanized Pipe

The method for connecting the adapter to the galvanized pipe will depend on the type of adapter you have chosen.

Threaded adapters should be carefully threaded onto the galvanized pipe, ensuring a snug but not overly tight fit. Overtightening can damage the threads and cause leaks.

Compression fittings, often used with solvent weld adapters, require tightening the compression nut to create a seal around the galvanized pipe. Follow the manufacturer’s instructions for proper torque.

Advantages and Disadvantages

The primary advantage of using adapters is the creation of a rigid and potentially more durable connection compared to rubber sleeve couplings.

This makes it a suitable option for applications where stability and longevity are paramount.

However, adapters can be more complex to install, requiring specialized fittings and a greater degree of precision.

The process of threading galvanized pipe or using compression fittings can also be challenging for novice plumbers.

Transitioning from adapters, which often rely on threading or solvent welding, let’s explore another robust solution.

Method 3: Pipe Fittings with Mechanical Gripping for Non-Threaded Galvanized Pipe

For situations where you’re dealing with non-threaded galvanized pipe, specialized fittings employing mechanical gripping offer a reliable connection method to PVC. These fittings eliminate the need for threading, welding, or solvent, making them an attractive option, particularly when working with older, potentially compromised galvanized pipes.

Understanding Mechanical Grip Fittings

Mechanical grip fittings create a watertight seal by using internal gripping mechanisms. These mechanisms, often consisting of toothed rings or specialized gaskets, firmly clamp onto the outer surface of the pipe when the fitting is tightened. This creates a secure and leak-proof joint, even on pipes that lack threads.

These fittings commonly feature a PVC socket on one end, designed to accept and seal with PVC pipe using standard PVC cement. The other end is engineered to grip the galvanized pipe.

Preparing the Galvanized Pipe

Proper preparation of the galvanized pipe is essential for a successful connection. While threading isn’t required, a clean and smooth pipe surface is crucial for the mechanical grip to function effectively.

Cutting the Pipe

Use a pipe cutter specifically designed for galvanized pipe. This ensures a clean, square cut without deforming the pipe. Avoid using a saw, as it can create jagged edges and leave behind metal shavings that can interfere with the fitting’s grip.

Deburring the Edges

After cutting, use a deburring tool to remove any sharp edges or burrs from both the inside and outside of the pipe. These imperfections can damage the fitting’s internal components and compromise the seal. A smooth, chamfered edge is ideal.

Types of Mechanical Grip Fittings

Several types of mechanical grip fittings are available for connecting non-threaded galvanized pipe to PVC. Choosing the right fitting depends on the specific application and the size of the pipes being joined.

Compression Couplings

These couplings utilize a compression nut and gasket to create a seal. As the nut is tightened, the gasket compresses against the pipe, creating a watertight connection. They are relatively easy to install and offer good resistance to vibration and pressure.

Gripper Rings

Some fittings incorporate internal gripper rings that bite into the galvanized pipe when the fitting is tightened. These rings provide a strong and secure grip, making them suitable for high-pressure applications.

Push-Fit Fittings

Push-fit fittings offer the easiest installation. Simply push the galvanized pipe into one end of the fitting and the PVC pipe into the other. Internal mechanisms automatically grip the pipes, creating a secure seal. However, these fittings may be more expensive than other options.

Choosing the Right Fitting

Consider the pressure requirements of your plumbing system and the accessibility of the connection point. For easily accessible locations and low-pressure applications, compression couplings or push-fit fittings may be sufficient. For more demanding applications, consider fittings with gripper rings. Always carefully review the manufacturer’s specifications to ensure the fitting is compatible with the types and sizes of pipes you are connecting.

By understanding the principles of mechanical grip fittings and following proper preparation techniques, you can confidently and safely connect non-threaded galvanized pipe to PVC.

Transitioning from adapters, which often rely on threading or solvent welding, let’s explore another robust solution.

Prioritizing Safety: Essential Precautions

Connecting galvanized pipe to PVC, while seemingly straightforward, presents inherent risks if proper safety measures are overlooked. Prioritizing safety is not merely a suggestion; it’s an absolute necessity to prevent injuries and ensure a successful, long-lasting connection.

Protecting Yourself: Gear Up

The first line of defense against potential hazards lies in wearing appropriate personal protective equipment (PPE).

Safety glasses are non-negotiable. Debris from cutting galvanized pipe, accidental splashes of PVC cement, or even the snap of a brittle pipe can cause serious eye injuries. Invest in a comfortable, well-fitting pair and wear them at all times.

Similarly, work gloves are essential for protecting your hands from sharp edges, rough pipe surfaces, and chemical irritants. Choose gloves that provide a good grip and offer sufficient dexterity for handling tools and materials.

Ventilation: A Breath of Fresh Air

Working with PVC cement requires adequate ventilation. The fumes emitted by these solvents can be harmful if inhaled in concentrated amounts.

Always work in a well-ventilated area, preferably outdoors or with open windows and fans circulating air. Read the manufacturer’s instructions on the cement container for specific ventilation requirements and heed their warnings.

The Perils of Overtightening

Mechanical clamps, while effective for creating a secure connection, are susceptible to damage if overtightened. Excessive force can strip the threads on the clamp, crush the pipe, or compromise the integrity of the coupling.

Tighten the clamps gradually, following the manufacturer’s torque specifications. If you don’t have a torque wrench, tighten until the connection feels snug and secure, but avoid applying excessive force. It’s better to tighten a little more later if needed than to overtighten and ruin the connection.

The Leak Test: Seal of Approval

Once the connection is complete, the final step is to thoroughly check for leaks. This should be done immediately after installation.

Turn on the water supply and carefully inspect all joints for any signs of dripping or seepage. If leaks are detected, tighten the clamps or fittings as needed. If the leaks persist, disassemble the connection and inspect the components for damage or misalignment.

Remember, a small leak left unattended can lead to significant water damage and costly repairs down the road.

Your Toolkit: Tools and Materials Checklist

Connecting galvanized pipe to PVC requires the right tools and materials.

Having everything on hand before you start will save time and frustration, and ensure a safe, effective connection.

This comprehensive checklist covers everything you’ll need.

Essential Materials

Piping and Fittings

• Galvanized Pipe: Of the appropriate diameter and length for your project. Ensure it is the correct type (threaded or non-threaded) for your chosen connection method.

• PVC (Polyvinyl Chloride) Pipe: Matching the diameter of the galvanized pipe, or sized appropriately for any adapter fittings you plan to use.

• Non-Threaded Galvanized Pipe

• Appropriate Pipe Fittings: Select these based on your chosen connection method. Options include couplings, elbows, tees, and unions. Ensure they are compatible with both galvanized and PVC.

• Adapters (if using the adapter method): Transition fittings that convert from galvanized threading (if applicable) to a PVC solvent weld connection.

• Rubber Sleeve Couplings (if using this method): Flexible couplings like Fernco, designed to join dissimilar materials.

• Mechanical Clamps (for rubber sleeve couplings): Stainless steel clamps to secure rubber sleeve couplings.

Bonding and Sealing

• PVC Cement: Specifically formulated for bonding PVC pipe and fittings. Ensure you also have the appropriate primer, if required by the cement manufacturer. Always follow the manufacturer’s instructions.

Essential Tools

Measurement and Cutting

• Measuring Tape: For precise measurements of pipe lengths and fitting placement.

• Pipe Cutters: Essential for clean, square cuts on both galvanized and PVC pipe. A dedicated PVC cutter can be used for PVC, while a hacksaw or specialized galvanized pipe cutter is needed for galvanized pipe.

• Deburring Tool: To smooth the sharp edges of cut pipe. This is critical for ensuring a proper seal and preventing damage to fittings.

Safety and Protection

• Safety Glasses: Absolutely essential for protecting your eyes from flying debris when cutting or deburring pipe.

• Work Gloves: Protect your hands from sharp edges, rough surfaces, and potential chemical irritants.

Assembly

• Wrench or Pliers: If using threaded fittings or mechanical clamps, you’ll need the appropriate wrench or pliers to tighten them securely.

• Screwdriver or Nut Driver: May be required for tightening mechanical clamps on rubber sleeve couplings.

Galvanized and PVC pipes, adapters, couplings, cement, and an array of tools, meticulously assembled – you’ve followed the guides, tightened the clamps, and applied the cement. But the job isn’t truly finished until you’ve verified the integrity of your connection.

Leak Testing and Troubleshooting: Ensuring a Solid Connection

The success of your galvanized-to-PVC connection hinges on its ability to remain leak-free under pressure. A seemingly minor drip can escalate into significant water damage over time, so thorough testing is paramount.

Performing the Leak Test

Once the connection is complete and any adhesives have had sufficient time to cure, according to the manufacturer’s instructions, it’s time to put it to the test.

1. Gradual Pressure Introduction: Slowly turn on the water supply to the newly connected section of pipe. Avoid a sudden surge of pressure, which could stress the joint and cause an immediate failure.

2. Visual Inspection: Carefully examine the connection point, paying close attention to all joints and fittings. Look for any signs of water beading, dripping, or seeping. Use a dry cloth to wipe the connection dry, allowing you to more easily spot any new leaks that form.

3. Extended Monitoring: Allow the system to remain under pressure for an extended period (at least 30 minutes, ideally longer). This will reveal any slow leaks that might not be immediately apparent.

4. Pressure Gauge Observation: If possible, monitor the water pressure in the system using a pressure gauge. A drop in pressure over time indicates a leak, even if you don’t see visible water.

Troubleshooting Common Issues

Even with careful installation, leaks can sometimes occur. Here’s how to address some common problems:

• Drips at Rubber Sleeve Couplings:

  • Cause: Often due to loose clamps or improper seating of the coupling.
  • Solution: Tighten the mechanical clamps evenly, alternating between screws. Ensure the coupling is properly positioned over both pipes. If the rubber is damaged, the coupling will need to be replaced.

• Leaks at Threaded Adapter Connections:

  • Cause: Insufficient sealant (pipe dope or Teflon tape) or over-tightening.
  • Solution: Disconnect the fitting, clean the threads, and reapply sealant. Tighten to the appropriate torque – not too loose, but also not so tight that you risk stripping the threads.

• Leaks at Solvent-Welded PVC Joints:

  • Cause: Improper application of PVC cement and primer, insufficient curing time, or movement during the curing process.
  • Solution: Unfortunately, a leaking solvent-welded joint typically requires cutting out the fitting and replacing it. Ensure you properly prepare the pipe surfaces, apply primer and cement generously, and hold the joint firmly together until the cement sets. Adhere to the cement manufacturer’s recommended cure time.

The Indispensable Role of the Measuring Tape

Accuracy is crucial in any plumbing project, and your measuring tape is your best friend.

1. Precise Pipe Lengths: Accurate measurements ensure pipes fit snugly within fittings and couplings, minimizing stress on the joints. Always measure twice and cut once.

2. Proper Fitting Placement: Correct measurements are essential for positioning fittings accurately, especially when working in tight spaces or connecting to existing plumbing.

3. Verifying Alignment: Use your measuring tape to confirm that connected pipes are properly aligned and not under undue stress. Misalignment is a common cause of leaks and premature failure.

By thoroughly testing your connections and addressing any issues promptly, you can ensure a reliable and long-lasting plumbing system.

So, you’ve learned a thing or two about how to connect non threaded galvanized pipe to pvc, huh? Now get out there, get your hands dirty, and make those connections happen! Good luck!
